GR Series
May not be exact product – for reference only.
10F-2Z-C1
Lead Time:Â
Control Voltage
250V
output
10A
terminal configuration
Octal
options
Optional retainer (GR-MR)
$6.97
Description of Function

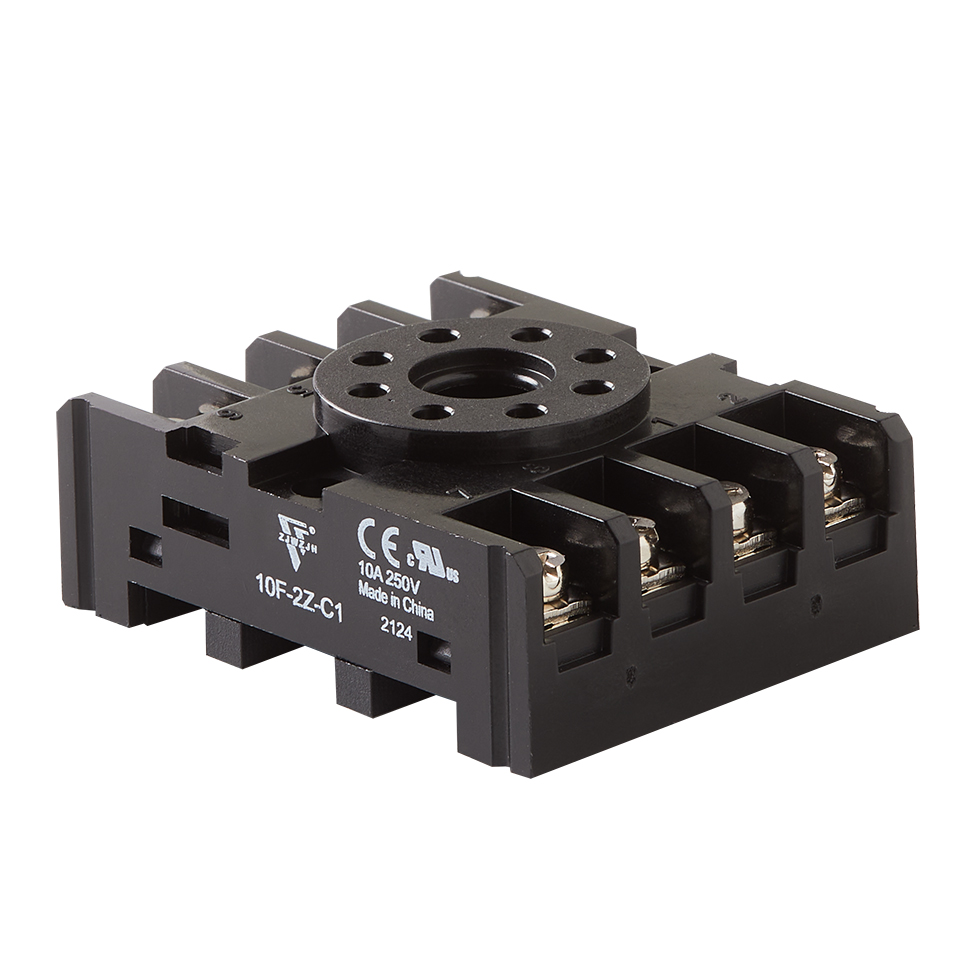

The 10F-2Z-C1 is an 8 pin screw or DIN rail mounted octal socket made for the GR general purpose relay series.
Product Overview
Features:
N/A
Enclosure Style:
N/A
Configuration / Contact Rating:
10A @ 250V
Application Information:
Wiring: 1 or 2, solid or stranded, 16-30 AWG Termination: Plus-minus screw (M3x8) with pressure plate. Tighten to recommended torque of 5.2 in-lb (maximum 6.9 in-lb) Temperature: Operating, -25° C to 85° C (-13° F to 185° F); Storage, -40° C to 85° C (-40° F to 185° F
Approvals:
Operations
N/A
