AE Series

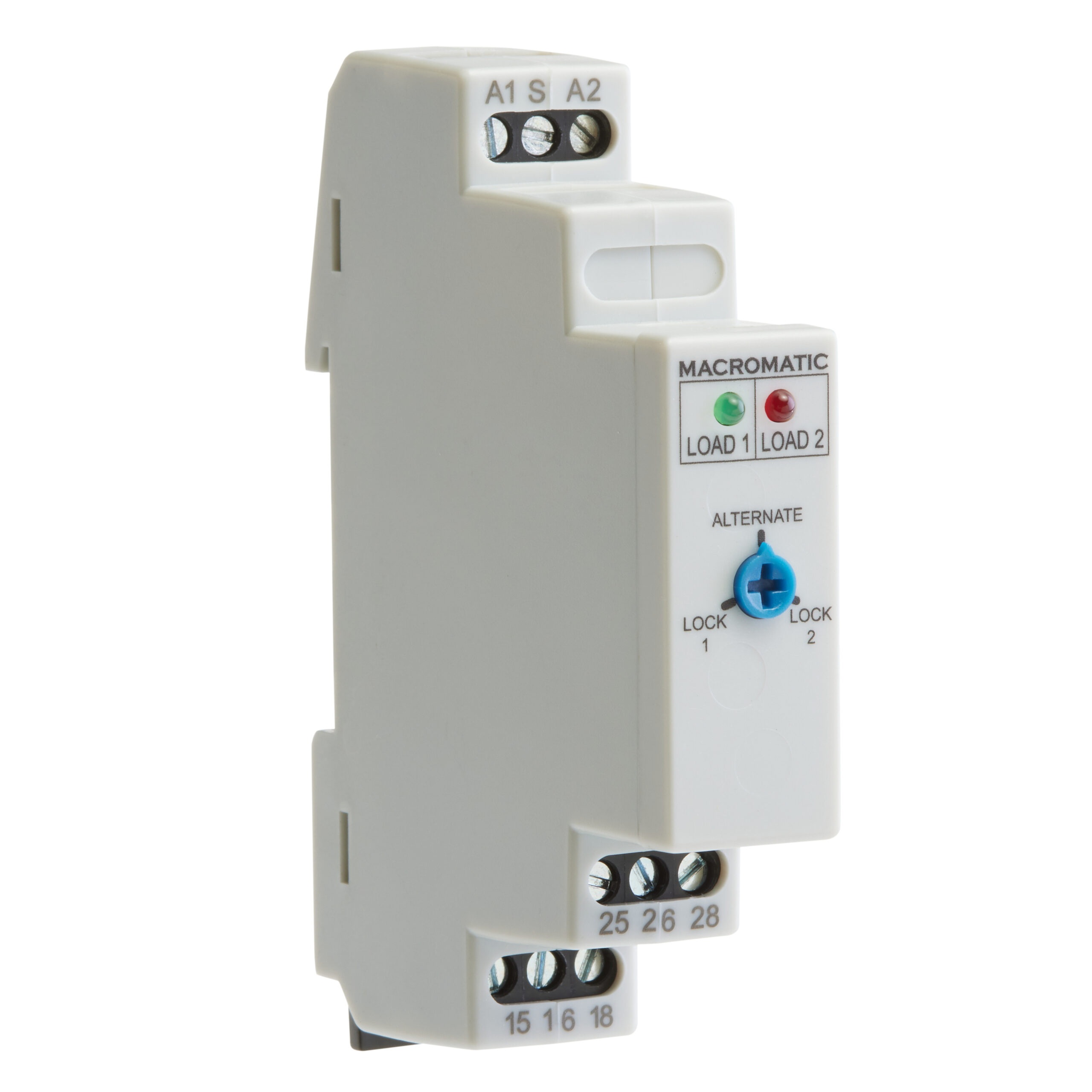

May not be exact product – for reference only.
AE1U2R
Lead Time:
11 Days
function
Duplex DPDT
control voltage
24-240V AC & 12-240V DC
output
10A DPDT
TIMING RANGE
TIMING RANGE 2
MOUNT
35mm Din-Rail
Setting Adjustment
Digital
Options
Switch to Select Normal Alternation or Lock Loads
Description of Function
In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are off. The green LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.
Function Chart
Product Overview
Features:
• Single function for easy setup & operation
• Slim 17.5mm design for compact DIN-Rail mounting
• Universal Control Voltage: 24-240V AC & 12-240V DC
• UL listed for U.S. and Canada (cULus)
• LEDs indicate power applied and relay status
• 10A DPDT
• Slim 17.5mm design for compact DIN-Rail mounting
• Universal Control Voltage: 24-240V AC & 12-240V DC
• UL listed for U.S. and Canada (cULus)
• LEDs indicate power applied and relay status
• 10A DPDT
Enclosure Style:
17.5mm
Configuration / Contact Rating:
DPDT 10A @ 250V AC / 8A @ 30 V DC
Application Information:
• Voltage Tolerance:
AC Operation +10/-15% of nominal at 50/60 Hz
DC Operation -10/15% of nominal
• Load (Burden): Maximum of 4 VA
• Reset Time: 0.04 seconds
• Start-up time: 0.05 seconds
• Maintain Function Time: 0.01 seconds
• Minimum Required Trigger Switch Closure: 0.05 seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149° F)
Storage: -40° to 85° C (-49° to 185° F)
• Life:
Mechanical: 10,000,000 perations
Full load: 100,000 operations
• Mounting: 35MM DIN Rail required, panel mounting with screw not supported
• Wiring:
Flat blade (slotted) screw terminals
Wire Size: 12-22AWG
Maximum Tightening Torque: 4in-lb
Recommend 1/8″ (3 mm) screw drivers
AC Operation +10/-15% of nominal at 50/60 Hz
DC Operation -10/15% of nominal
• Load (Burden): Maximum of 4 VA
• Reset Time: 0.04 seconds
• Start-up time: 0.05 seconds
• Maintain Function Time: 0.01 seconds
• Minimum Required Trigger Switch Closure: 0.05 seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149° F)
Storage: -40° to 85° C (-49° to 185° F)
• Life:
Mechanical: 10,000,000 perations
Full load: 100,000 operations
• Mounting: 35MM DIN Rail required, panel mounting with screw not supported
• Wiring:
Flat blade (slotted) screw terminals
Wire Size: 12-22AWG
Maximum Tightening Torque: 4in-lb
Recommend 1/8″ (3 mm) screw drivers
Approvals:
