AE Series

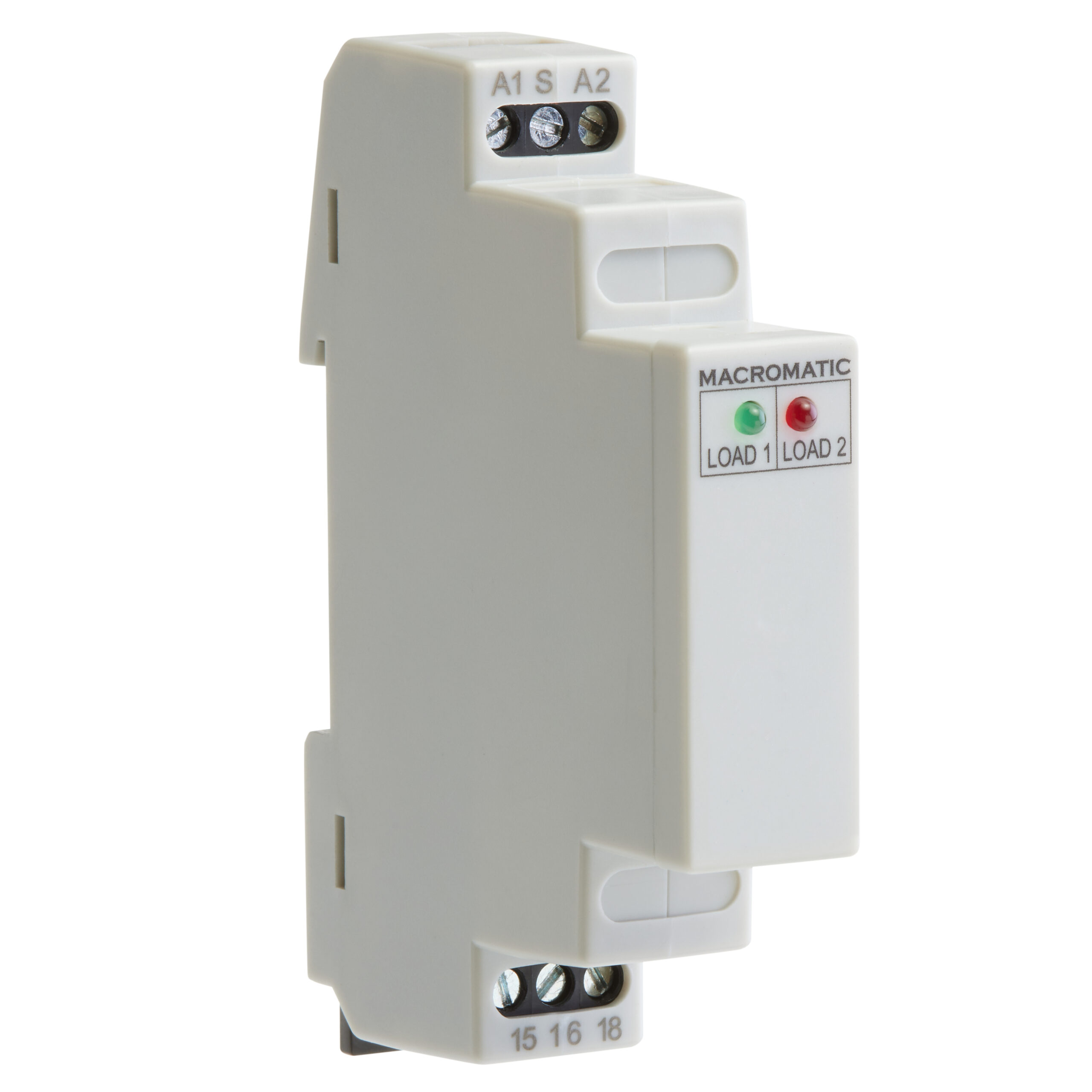

May not be exact product – for reference only.
AE1U6
Lead Time:
14 Days
function
Duplex SPDT
control voltage
24-240V AC & 12-240V DC
output
10A SPDT
TIMING RANGE
TIMING RANGE 2
MOUNT
35mm Din-Rail
Setting Adjustment
None
Options
None

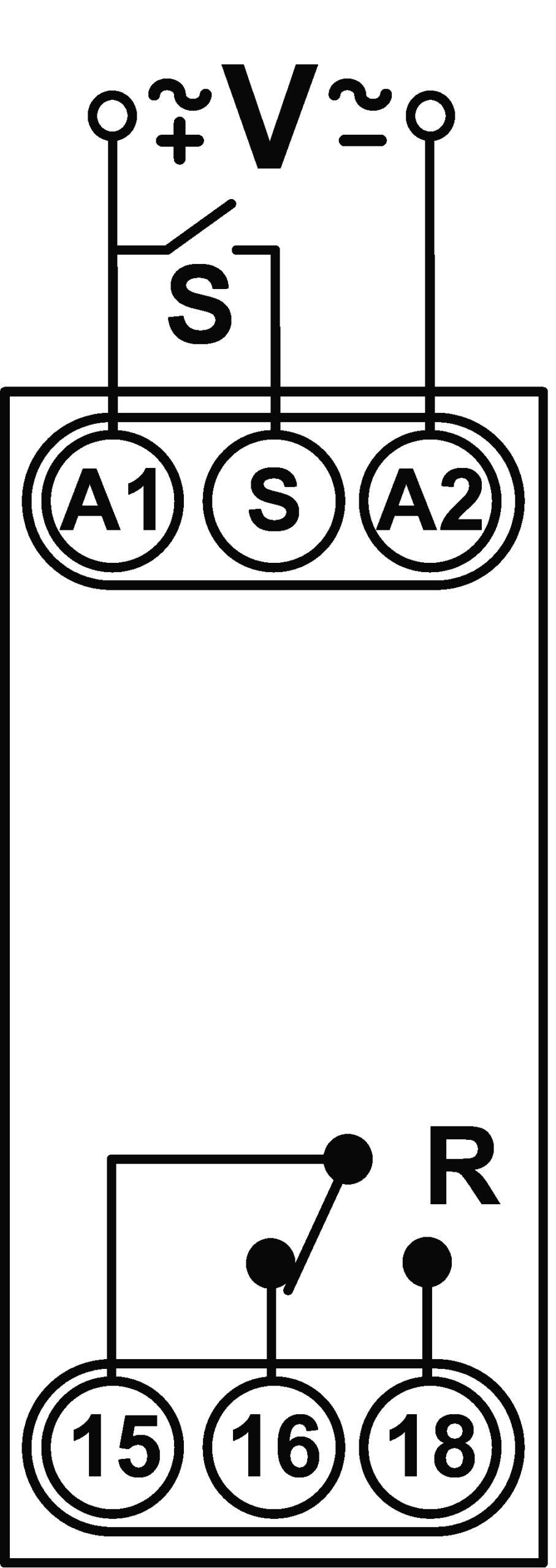

Description of Function
In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are off. The green LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.

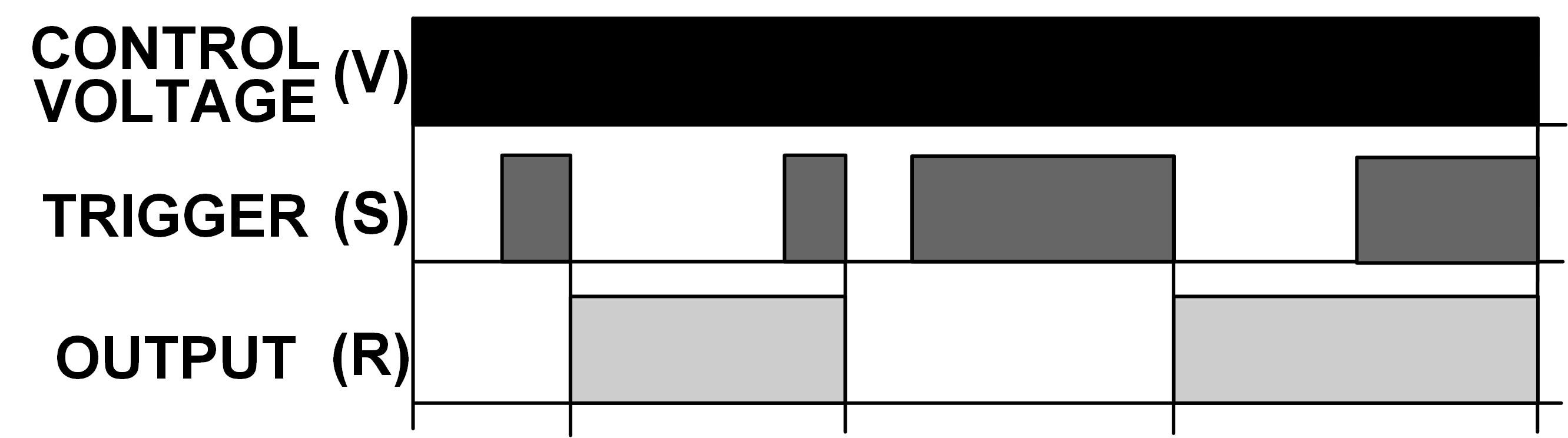

Function Chart
Product Overview
Features:
• Single function for easy setup & operation
• Slim 17.5mm design for compact DIN-Rail mounting
• Universal Control Voltage: 24-240V AC & 12-240V DC
• UL listed for U.S. and Canada (cULus)
• LEDs indicate power applied and relay status
• 10A SPDT
• Slim 17.5mm design for compact DIN-Rail mounting
• Universal Control Voltage: 24-240V AC & 12-240V DC
• UL listed for U.S. and Canada (cULus)
• LEDs indicate power applied and relay status
• 10A SPDT
Enclosure Style:
17.5mm
Configuration / Contact Rating:
SPDT 10A @ 250V AC / 8A @ 30 V DC
Application Information:
• Voltage Tolerance:
AC Operation +10/-15% of nominal at 50/60 Hz
DC Operation -10/15% of nominal
• Load (Burden): Maximum of 4 VA
• Reset Time: 0.04 seconds
• Start-up time: 0.05 seconds
• Maintain Function Time: 0.01 seconds
• Minimum Required Trigger Switch Closure: 0.05 seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149° F)
Storage: -40° to 85° C (-49° to 185° F)
• Life:
Mechanical: 10,000,000 perations
Full load: 100,000 operations
• Mounting: 35MM DIN Rail required, panel mounting with screw not supported
• Wiring:
Flat blade (slotted) screw terminals
Wire Size: 12-22AWG
Maximum Tightening Torque: 4in-lb
Recommend 1/8″ (3 mm) screw drivers
AC Operation +10/-15% of nominal at 50/60 Hz
DC Operation -10/15% of nominal
• Load (Burden): Maximum of 4 VA
• Reset Time: 0.04 seconds
• Start-up time: 0.05 seconds
• Maintain Function Time: 0.01 seconds
• Minimum Required Trigger Switch Closure: 0.05 seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149° F)
Storage: -40° to 85° C (-49° to 185° F)
• Life:
Mechanical: 10,000,000 perations
Full load: 100,000 operations
• Mounting: 35MM DIN Rail required, panel mounting with screw not supported
• Wiring:
Flat blade (slotted) screw terminals
Wire Size: 12-22AWG
Maximum Tightening Torque: 4in-lb
Recommend 1/8″ (3 mm) screw drivers
Approvals:
