ARP Duplex
May not be exact product – for reference only.
ARP024A2R
Lead Time:
7
Days
ARP Installation Instructions
https://macromatic.com/wp-content/uploads/2024/02/901-0000-323.pdf.jpeg
ARP eCAD
https://macromatic.com/wp-content/uploads/2024/02/arp-ecad-package.zip
function
Duplex
control voltage
24V AC/DC
output:
Duplex DPDT w/ Selector Switch
enclosure style
Plug-in
standard modifications
Switch to select normal alternation or lock loads 1 or 2
$133.72
Description of Function

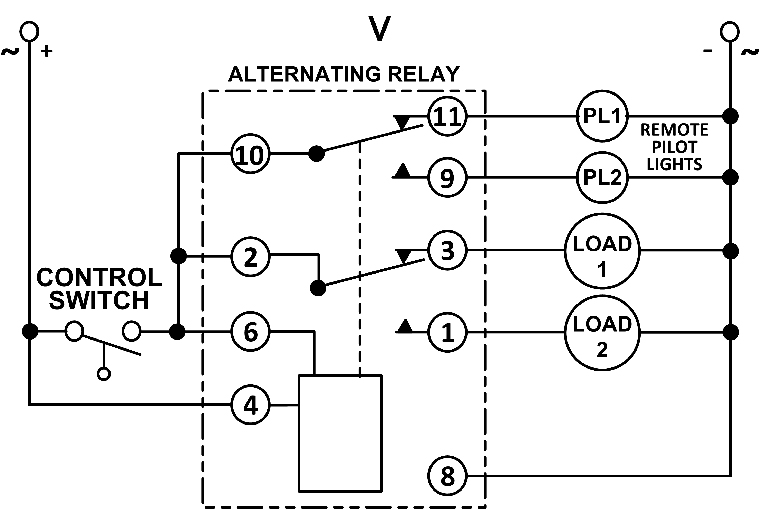

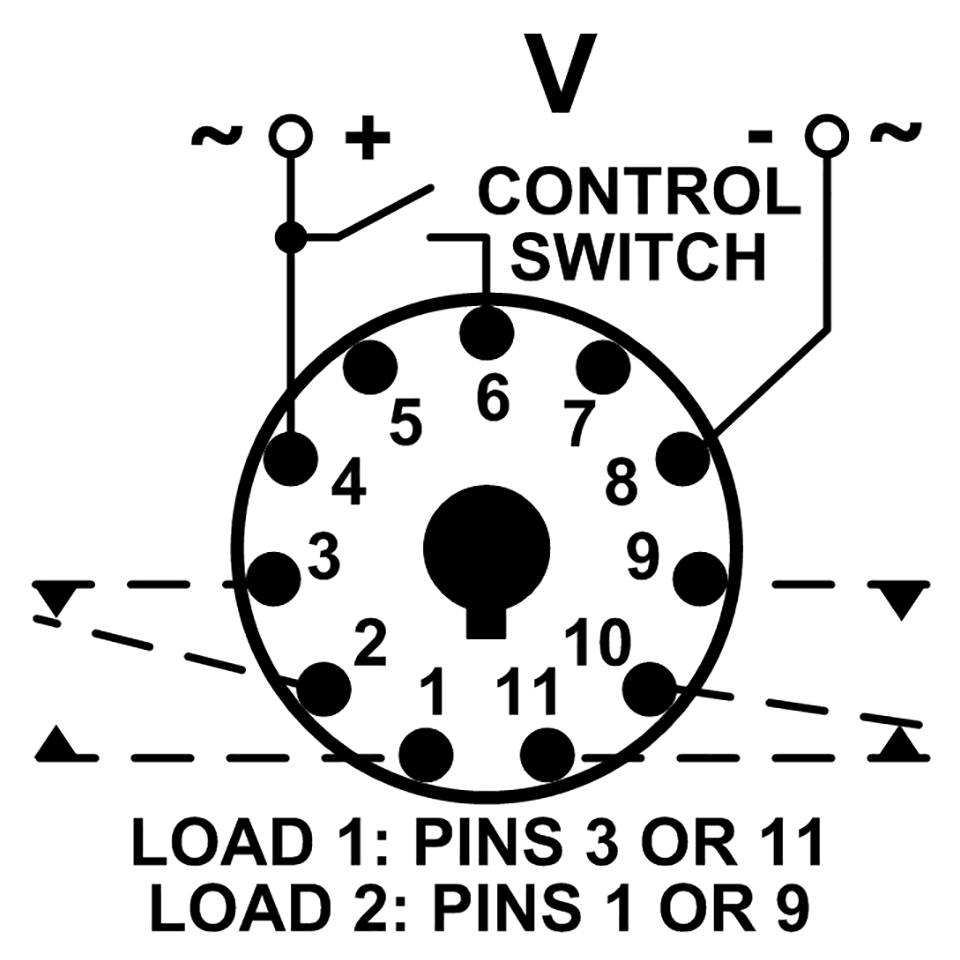

In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are
off. The red LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When
the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.
Product Overview
Features:
For Duplex Control of two loads Control Voltages of 12 & 24V AC/DC and 120 & 240V AC Three 10A output contact configurations: SPDT, DPDT, or DPDT Cross-Wired Optional low profile selector switch to lock in one sequence 2 LEDs indicate relay status
Enclosure Style:
Plug-in
Configuration / Contact Rating:
10A @ 240V AC/24V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
10A @ 240V AC/24V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
Application Information:
Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal. Load (Burden): Less than 3 VA Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2 Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations Temperature: -28° to 65° C (-18° to 149° F)
• Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal.
• Load (Burden): Less than 3 VA
• Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2
• Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations
• Temperature: -28° to 65° C (-18° to 149° F)
• Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation (12 & 24V only): +10/-15% of nominal.
• Load (Burden): Less than 3 VA
• Indicator LEDs: Two LEDs marked LOAD 1 and LOAD 2
• Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations
• Temperature: -28° to 65° C (-18° to 149° F)
Approvals:
Operations
In the off state, the Control Switch is open, the Alternating Relay is in the LOAD 1 position, and both LOAD 1 & LOAD 2 are off. The red LED marked “LOAD 1” is ON. When the Control Switch closes, it energizes LOAD 1. As long as the Control Switch remains closed, LOAD 1 remains energized. When the Control Switch opens, LOAD 1 is turned off and the Alternating Relay toggles to the LOAD 2 position. The red LED marked “LOAD 2” is ON. When the Control Switch closes again, it energizes LOAD 2. When the Control Switch opens, LOAD 2 is turned off, the Alternating Relay toggles back to the LOAD 1 position, the red LED marked “LOAD 1” is ON, and the process can be repeated.
