AR Series

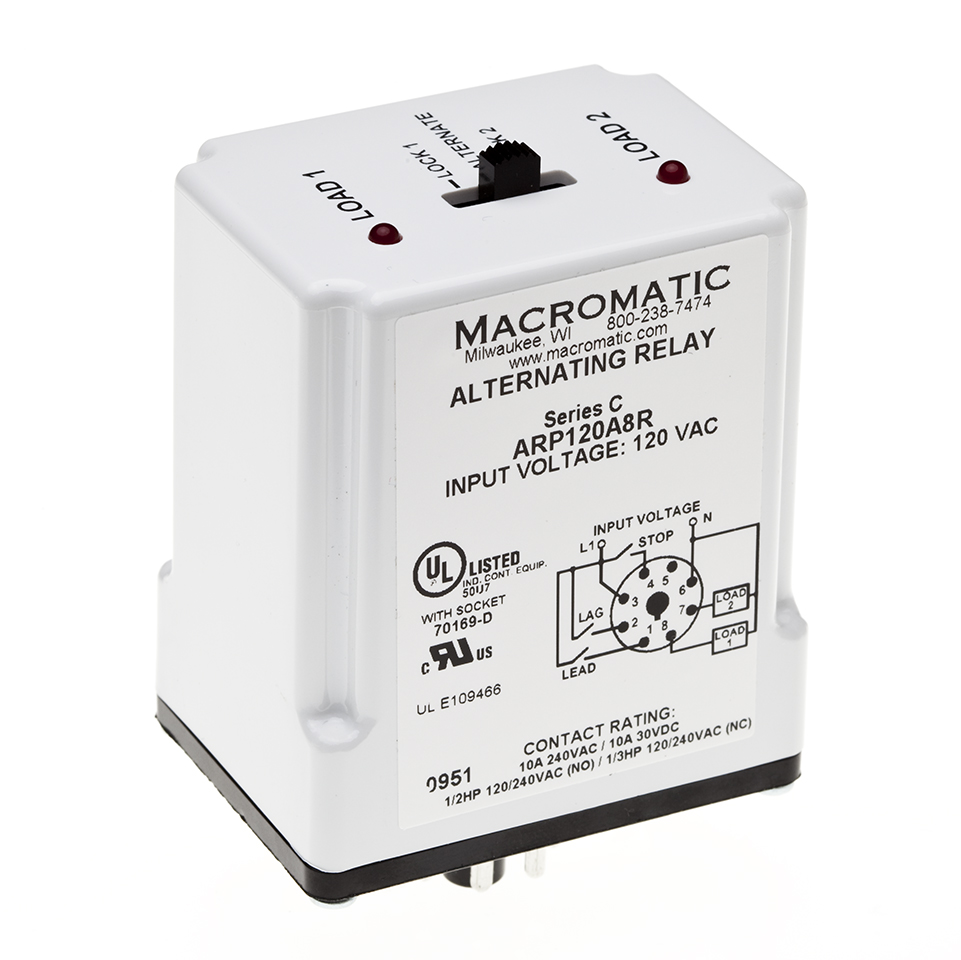

May not be exact product – for reference only.

ARP120A8R

Lead Time:

7 days

function

Duplex Sequence On – Simultaneous Off

control voltage

120V AC

output

5A DPDT

TIMING RANGE

TIMING RANGE 2

MOUNT

8-Pin Socket

Setting Adjustment

Digital

Options

Switch to Select Normal Alternation or Lock Loads

$122.26

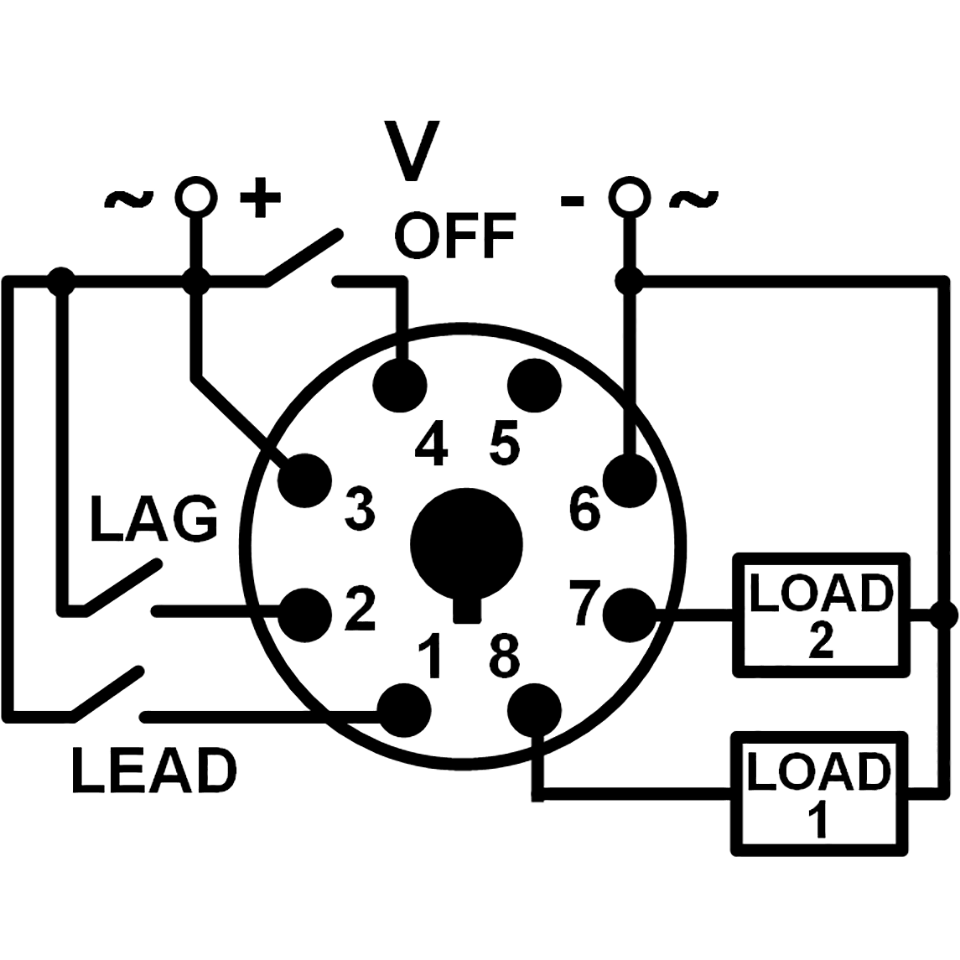

Description of Function

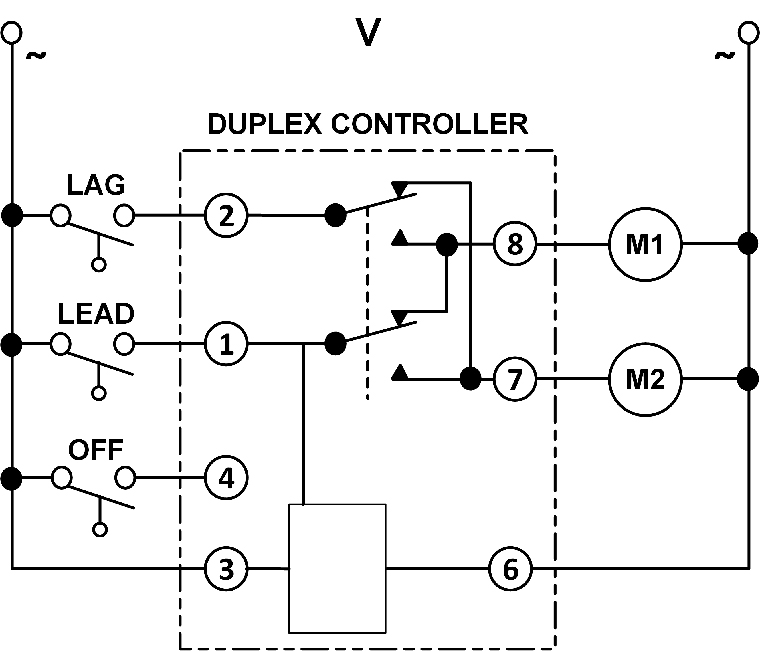

The two loads are energized sequentially, but remain on together until the OFF switch is opened. In the initial OFF state, all three switches are open, the Alternating Relay is in the LOAD 1 position, and both loads are OFF. No action happens with the Alternating Relay or either load when the OFF Switch closes. When the LEAD Switch closes, Load M1 turns ON. When the LAG Switch closes, Load M2 turns ON. Both loads remain ON as long as all three switches are closed. When the LAG Switch opens, Load M2 remains ON because the OFF Switch is still closed. When the LEAD Switch opens, Load M1 remains ON because the OFF Switch is still closed. When the OFF Switch opens, both Load M1 and Load M2 are turned off simultaneously. The Alternating Relay toggles to the LOAD 2 position. The entire cycle is then repeated, but with Load M2 energized first followed by Load M1.

Function Chart

Product Overview

Features:

• Combines functions of alternating relay, control relay, and auxiliary contacts in one unit
• Offers Sequence On – Simultaneous Off (S.O.S.O.) Operation with three float switch inputs
• Protects against failures of both OFF and LEAD switches
• Plug-in design utilizes industry-standard 8-pin octal socket saving space over separate components
• Low profile selector switch for normal alternation or to lock either load to be ON first
• Two LEDs indicate relay status

Enclosure Style:

Plug-in
Configuration / Contact Rating:
DPDT 5A @ 120V AC/ 5A @ 24V DC B300
Application Information:
• Voltage Tolerance: +10/-15% of nominal at 50/60 Hz
• Load (Burden): Less than 3 VA
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Temperature:
Operating: -28° to 65° C (-18° to 149° F)
Storage: -40° to 65° C (-18° to 149° F)
• Optional Selector Switch Settings: LOAD1 (always energizes first), ALTERNATE, LOAD2 (always energizes first)
Approvals:
