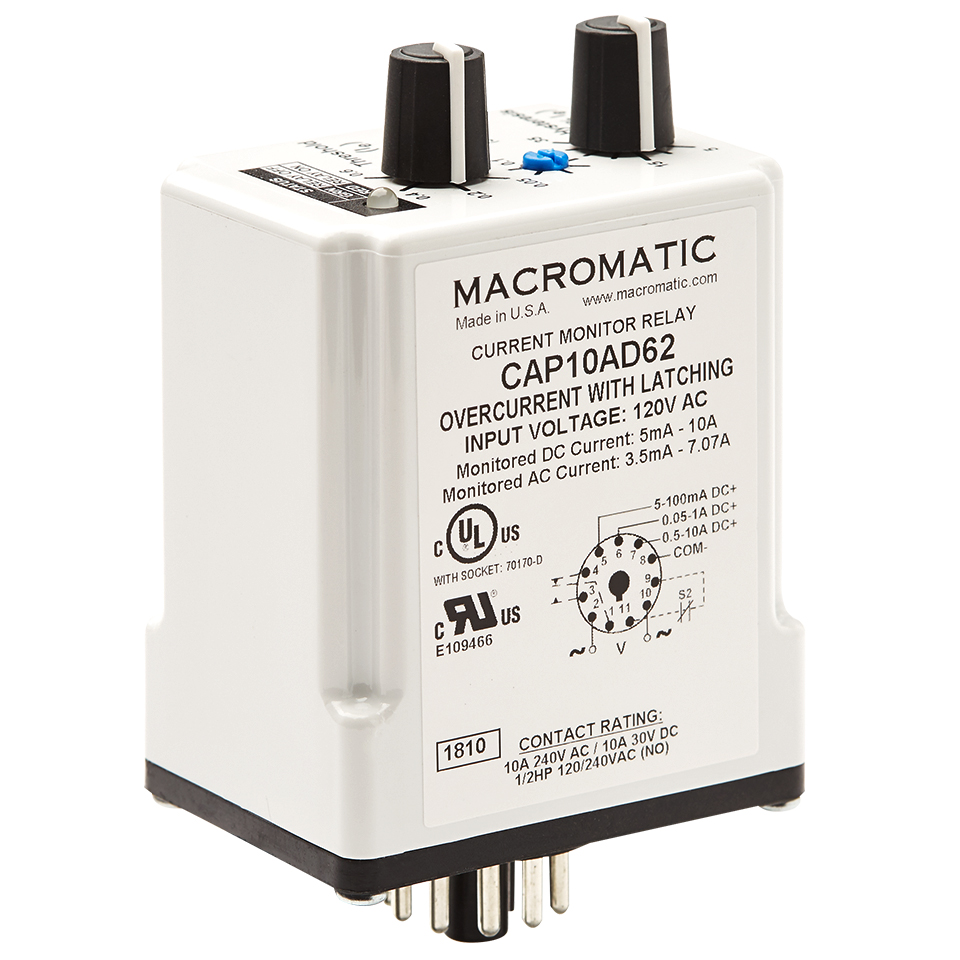

CAP Series
May not be exact product – for reference only.
CAP10AD62
Lead Time:
10 Days
function
AC/DC Overcurrent
control voltage
120V AC
output
10A SPDT
TRIP DELAY
0.1 Sec
SENSING DELAY ON POWER
0.1 – 10 Sec
MOUNT
11-Pin Socket
Setting Adjustment
Analog
Options
None
CURRENT RANGE
5mA – 10A
REMOTE POTENTIOMETER 2
$81.38
Description of Function

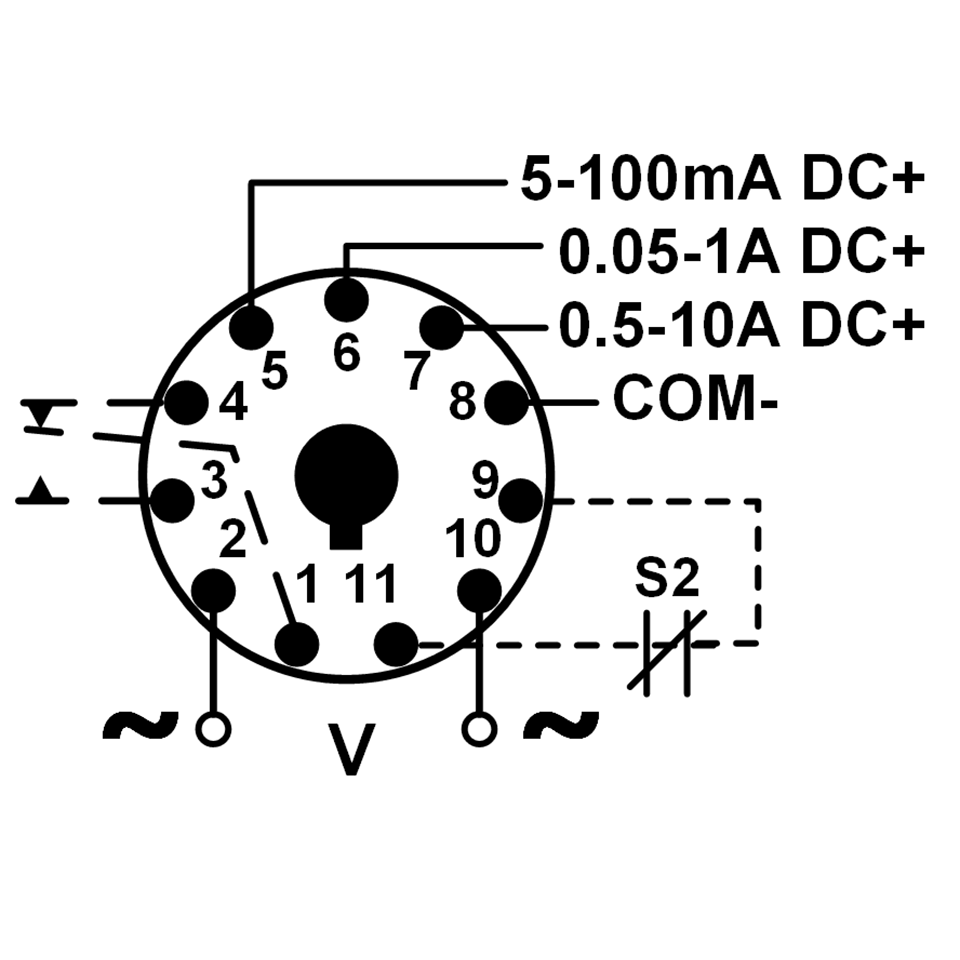

Non-Latching Mode: The unit will operate in the non-latching mode if no circuit is completed across pins 9 & 11 on power-up. After input voltage is applied (LED is Green) and the start-up sensing delay (ts) of 0.1 – 10 seconds is completed, the relay will energize when the monitored current is above the adjustable pick-up setting (“Threshold”) and the LED will be Red. It will de-energize when the monitored current goes below the adjustable drop-out setting (“Hysteresis”) by 5-50% of the selected pick-up setting or when input voltage is removed. The LED will be Green.
Latching Mode: The unit will operate in the latching mode if a N.C. contact (Memory S2) is onnected across pins 9 & 11 on power-up. After input voltage is applied (LED is Green) and the start-up sensing delay (ts) of 0.1 – 10 seconds is completed, the relay will energize when the monitored current is above the adjustable pick-up setting (“Threshold”) and the LED will be Red. It will de-energize when the monitored current goes below the adjustable drop-out setting (“Hysteresis”) by 5-50% of the selected pick-up setting and the N.C. contact (Memory S2) is opened, or when input voltage is removed. The LED will be Green. It is recommended to set the Hysteresis at 5% when in the latching mode.

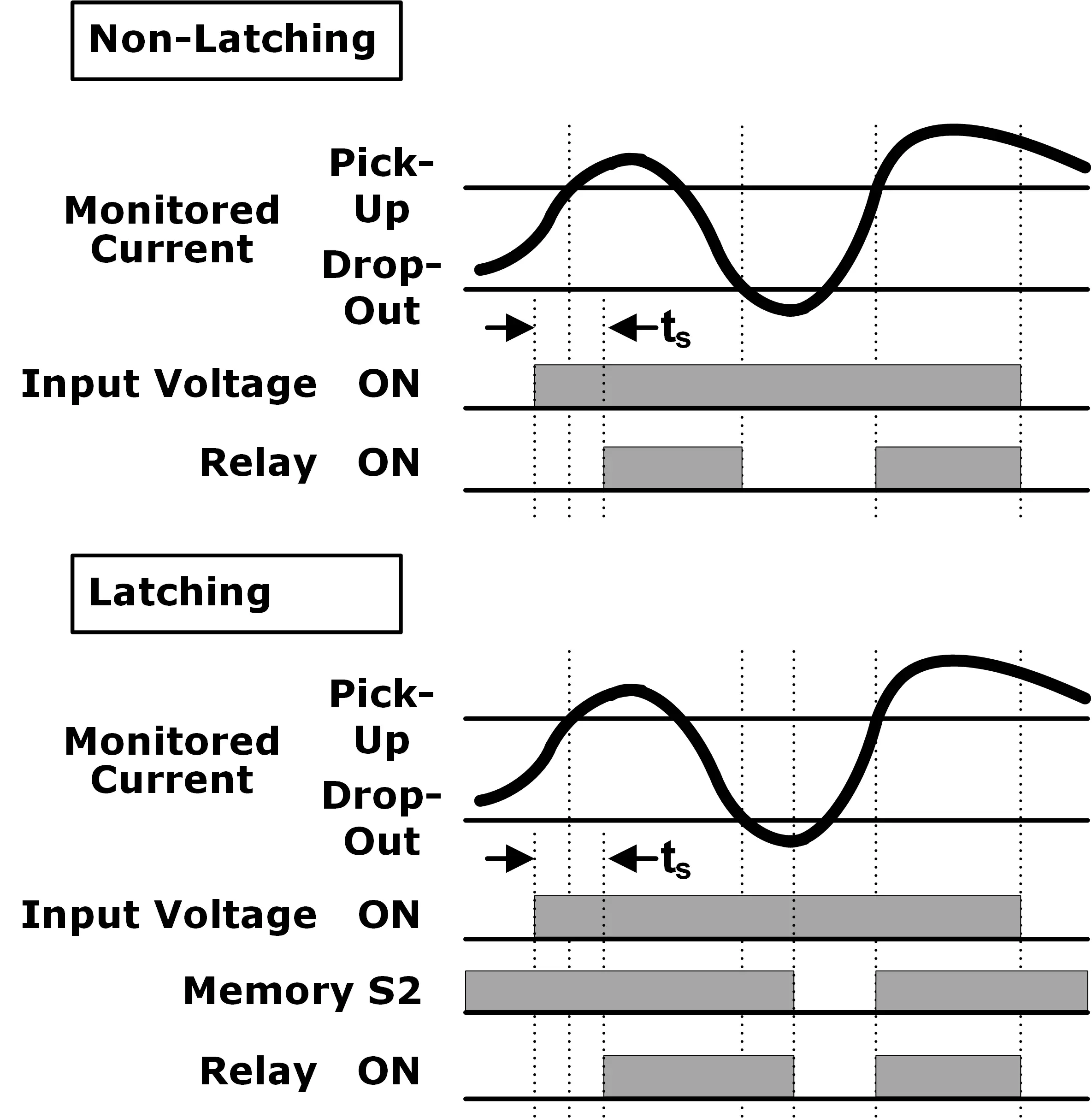

Function Chart
Product Overview
Features:
• Equivalent to LIRT and DIRT products from Crouzet
• Monitors for overcurrent conditions
• Each unit can monitor three current fanges for both AC & DC
• External CT can be used to extend ranges
• Adjustable pick-up & drop-out setting
• Adjustable sensing delay on power-up
• Non-Latching & latching mod
• LED indicates relay status
• Industry standard 11 Pin socket can be DIN rail mounted or panel mounted
• Monitors for overcurrent conditions
• Each unit can monitor three current fanges for both AC & DC
• External CT can be used to extend ranges
• Adjustable pick-up & drop-out setting
• Adjustable sensing delay on power-up
• Non-Latching & latching mod
• LED indicates relay status
• Industry standard 11 Pin socket can be DIN rail mounted or panel mounted

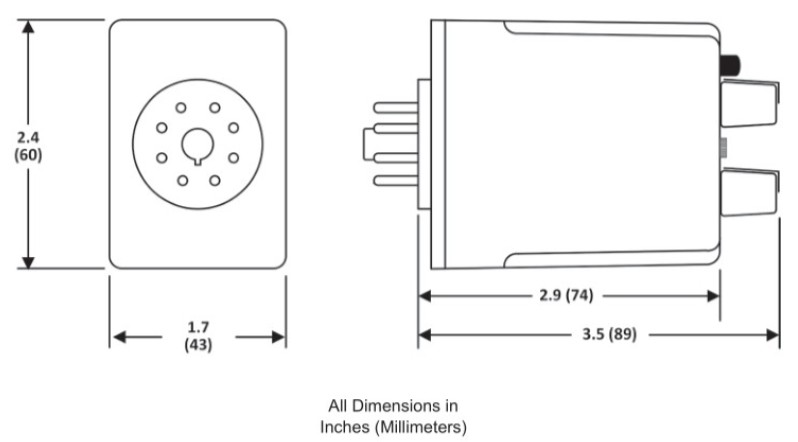

Enclosure Style:
Plug-in
Configuration / Contact Rating:
SPDT 10A @ 240V AC / 7A @ 28V DC, 1/4HP @ 120/240V AC
Application Information:
• Voltage Tolerance: +10/-15% of nominal at 50/60 Hz
• Load (Burden): Less than 5VA
• Current Settings:
Pick-up (Threshold): Adjustable throughout monitored current range
Drop-out (Hysteresis): Adjustable form 5-50% below pick-up setting
• Monitored Current Ranges: Three built-in current ranges to monitor both AC & DC current: 5 -100ma DC (3.5 – 70.7ma AC); 0.05 – 1A DC (0.035 – 0.707A AC); and 0.5 – 10A DC(0.35 – 7.07A AC)
• Response Times:
Pick-up & Drop-out: Fixed 100ms
Sensing delay on power-up (ts): 0.1 – 10 seconds
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Temperature:
Operating: -28° to 55°C (-18° to 131°F)
Storage: -40° to 85°C (-40° to 185°F)
• Mounting: Requires 8 pin octal socket (Macromatic 70169-D or equivalent)
• Load (Burden): Less than 5VA
• Current Settings:
Pick-up (Threshold): Adjustable throughout monitored current range
Drop-out (Hysteresis): Adjustable form 5-50% below pick-up setting
• Monitored Current Ranges: Three built-in current ranges to monitor both AC & DC current: 5 -100ma DC (3.5 – 70.7ma AC); 0.05 – 1A DC (0.035 – 0.707A AC); and 0.5 – 10A DC(0.35 – 7.07A AC)
• Response Times:
Pick-up & Drop-out: Fixed 100ms
Sensing delay on power-up (ts): 0.1 – 10 seconds
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Temperature:
Operating: -28° to 55°C (-18° to 131°F)
Storage: -40° to 85°C (-40° to 185°F)
• Mounting: Requires 8 pin octal socket (Macromatic 70169-D or equivalent)
Approvals:
