GB Series
May not be exact product – for reference only.
GB024D2
Lead Time:
Stock
function
General Purpose Blade Terminal Relay
control voltage
24V DC
output
12A 2 Form C
TIMING RANGE
TIMING RANGE 2
MOUNT

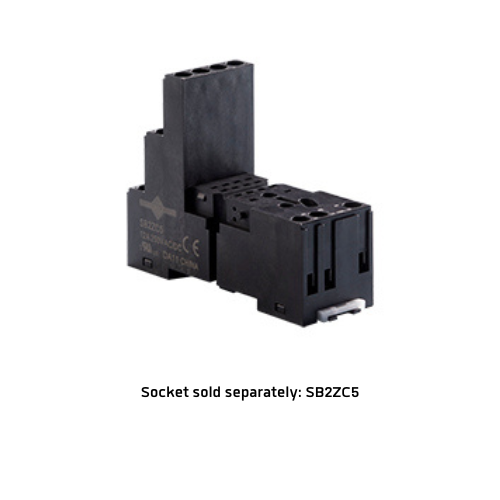

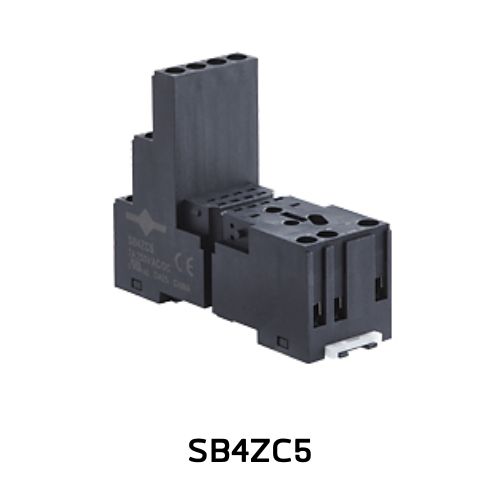

8-Blade Socket
Setting Adjustment
None
Options
None
$10.17
Description of Function
Compact GB Series General Purpose Relays are used for applications requiring an economical solution. These 8-blade terminal relays provide indication of power status, push-to-test and 2 Form C output contacts. Available sockets can be either DIN-rail or screw-mounted.
Product Overview
Features:
• High Capacity 12 Amp rated
• LED indication
• Push-to-test buttons (option to omit)
• Transparent dust cover
• 2 pole configurations
• RoHS compliant
• UL/cUL, CE approval
• LED indication
• Push-to-test buttons (option to omit)
• Transparent dust cover
• 2 pole configurations
• RoHS compliant
• UL/cUL, CE approval
Enclosure Style:
Plug-in
Configuration / Contact Rating:
2 Form C 12A 250V AC / 12A @ 30V DC 3000VA/360 W
Application Information:
• Load (Burden): Approximately 1.1 W
• Voltage Maximum: 250V
• Wire Size:
One 12-20 AWG, solid or stranded, or
Two 16-20 AWG, solid or stranded
• Life:
Mechanical: 20,000,000 operations
Electrical: 100,000 operations
• Temperature: -40°C to 70°C (-40°F to 158°F)
• Unit Weight: Approximately 0.08 lb (36g)
• Voltage Maximum: 250V
• Wire Size:
One 12-20 AWG, solid or stranded, or
Two 16-20 AWG, solid or stranded
• Life:
Mechanical: 20,000,000 operations
Electrical: 100,000 operations
• Temperature: -40°C to 70°C (-40°F to 158°F)
• Unit Weight: Approximately 0.08 lb (36g)
Approvals:
