GR Series
May not be exact product – for reference only.
GR024D3T
Lead Time:
Stock
function

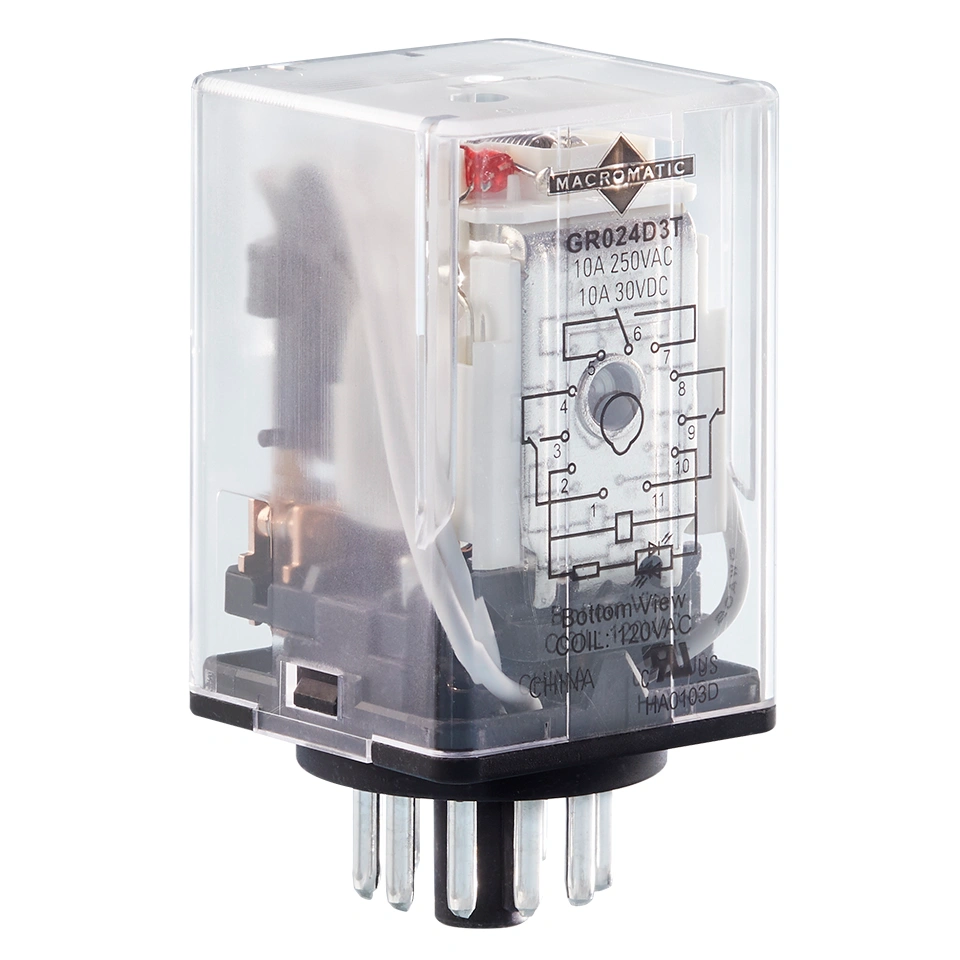

General Purpose Octal (Round) Terminal Relay
control voltage
24V DC
output
10A 3 Form C
TIMING RANGE
TIMING RANGE 2
MOUNT

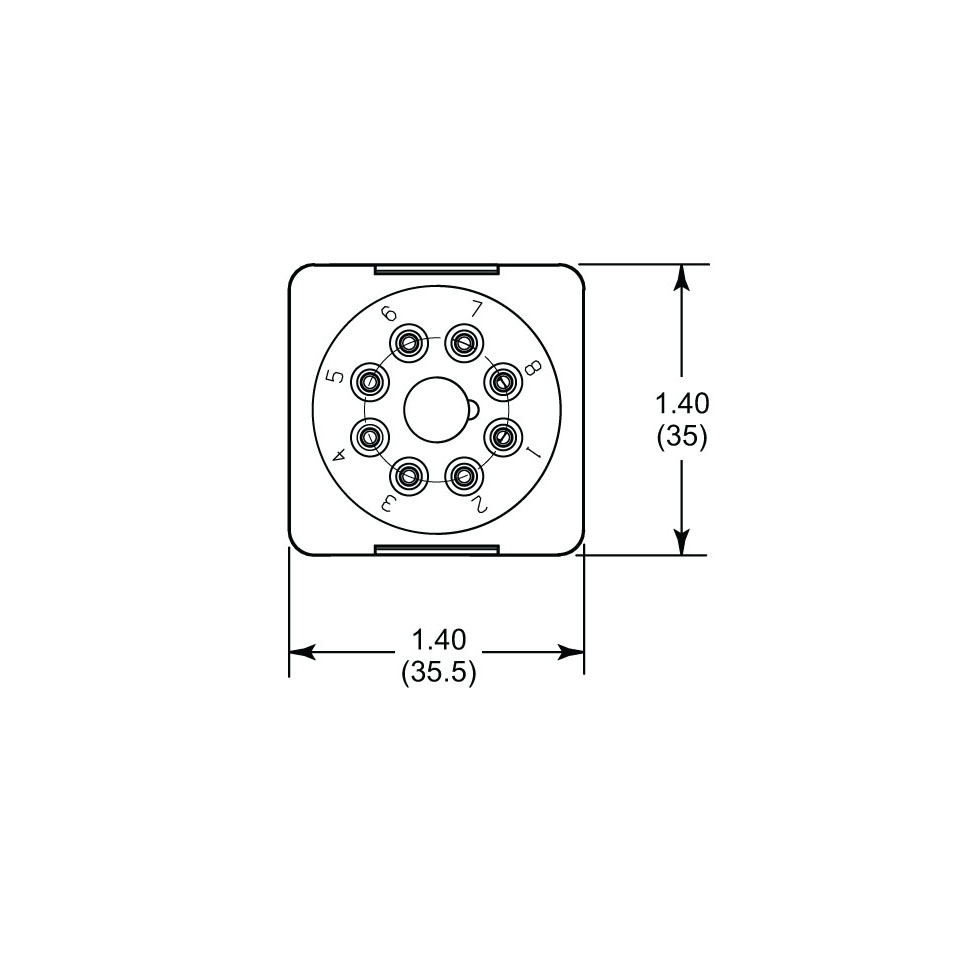

8-Pin Octal Socket
Setting Adjustment
None
Options
Omit Push-to-Test
$15.44
Description of Function

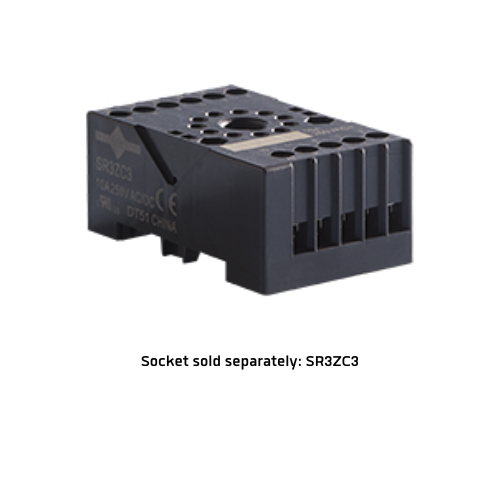

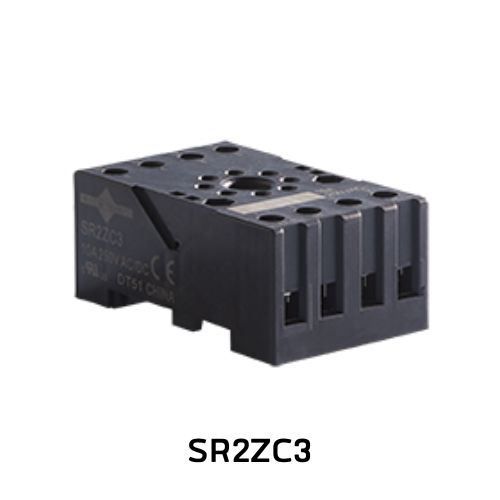

Compact GR Series General Purpose Relays are used for applications requiring an economical solution. These Octal (Round) eight-terminal relays provide indication of power status and 3 Form C output contacts. These models omit the Push-to-Test button. Available sockets can be either DIN-rail or screw-mounted.
Product Overview
Features:
• High Capacity 10 Amp rated
• LED indication
• Push-to-test buttons (option to omit)
• Transparent dust cover
• 3 pole configuration
• RoHS compliant
• UL/cUL, CE approval
• LED indication
• Push-to-test buttons (option to omit)
• Transparent dust cover
• 3 pole configuration
• RoHS compliant
• UL/cUL, CE approval
Enclosure Style:
Plug-in
Configuration / Contact Rating:
10A @ 250V AC / 10A @ 30V DC, 1/3 HP @ 120V AC,1/3 HP @ 240V AC, 1/2 HP @ 277V AC, 2500 VA/300 W
Application Information:
• Load (Burden): Approximately 1.4 W
• Voltage Maximum: 250V
• Wire Size:
One 12-20 AWG, solid or stranded or
Two 16-20 AWG, solid or sranded
• Life:
Mechanical: 10,000,000 operations
Electrical: 100,000 operations
• Temperature: -40°C to 55°C (-40°F to 131°F)
• Unit Weight: Approximately 0.20 lb (90g)
• Voltage Maximum: 250V
• Wire Size:
One 12-20 AWG, solid or stranded or
Two 16-20 AWG, solid or sranded
• Life:
Mechanical: 10,000,000 operations
Electrical: 100,000 operations
• Temperature: -40°C to 55°C (-40°F to 131°F)
• Unit Weight: Approximately 0.20 lb (90g)
Approvals:
