GSC Series
May not be exact product – for reference only.
GSC120C
Lead Time:
Control Voltage
120V AC/DC
output
1 Form C
terminal configuration
Slim (Pre-Mounted with Socket)
options
None
$18.82
Description of Function

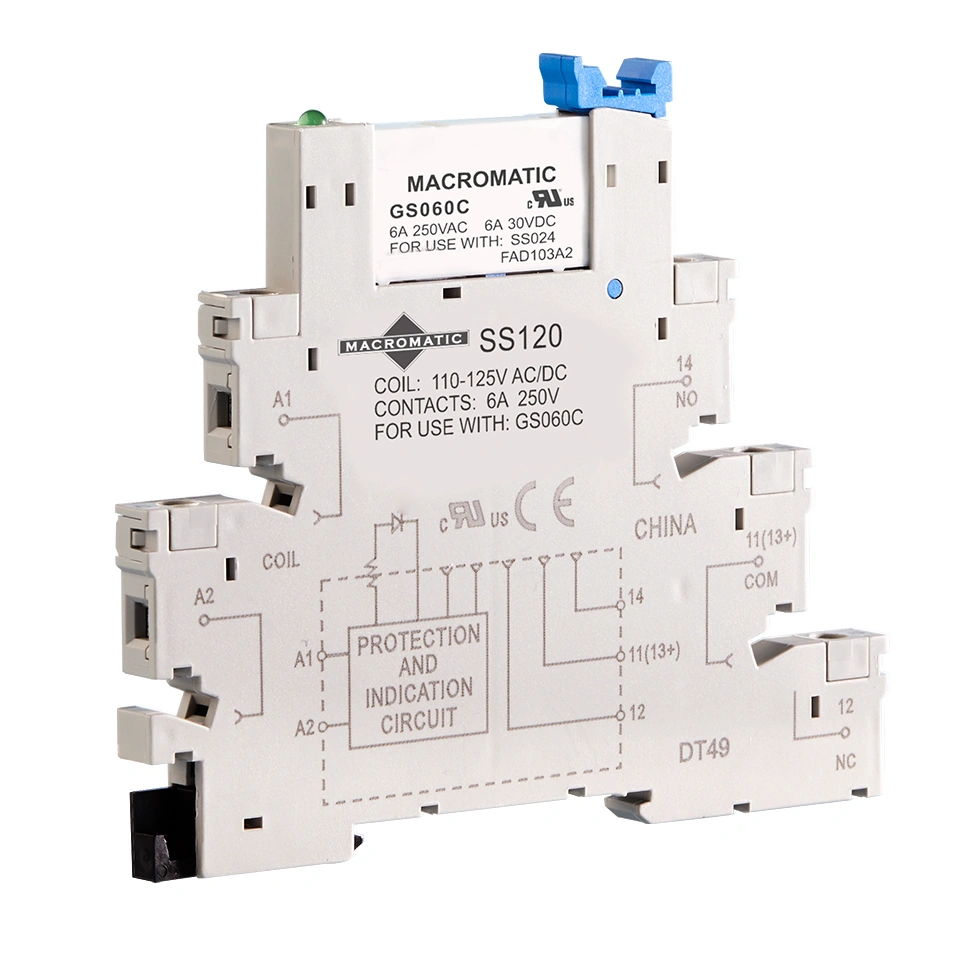

Compact GS Series General Purpose Relays are used for high density applications. The relay and sockets are assembled as one unit and must be used together, providing DIN-rail mounting. GSC120C is comprised of GS060C relay and SS120 socket. The relay and socket installation provides finger protection, indication of power status and 1 Form C output contact.
Product Overview
Features:
GS Series relay and its socket assembled as one unit and must be used together. Secure relay/socket retention with easy ejection LED power status indicator Finger safe protection RoHS compliant
Enclosure Style:

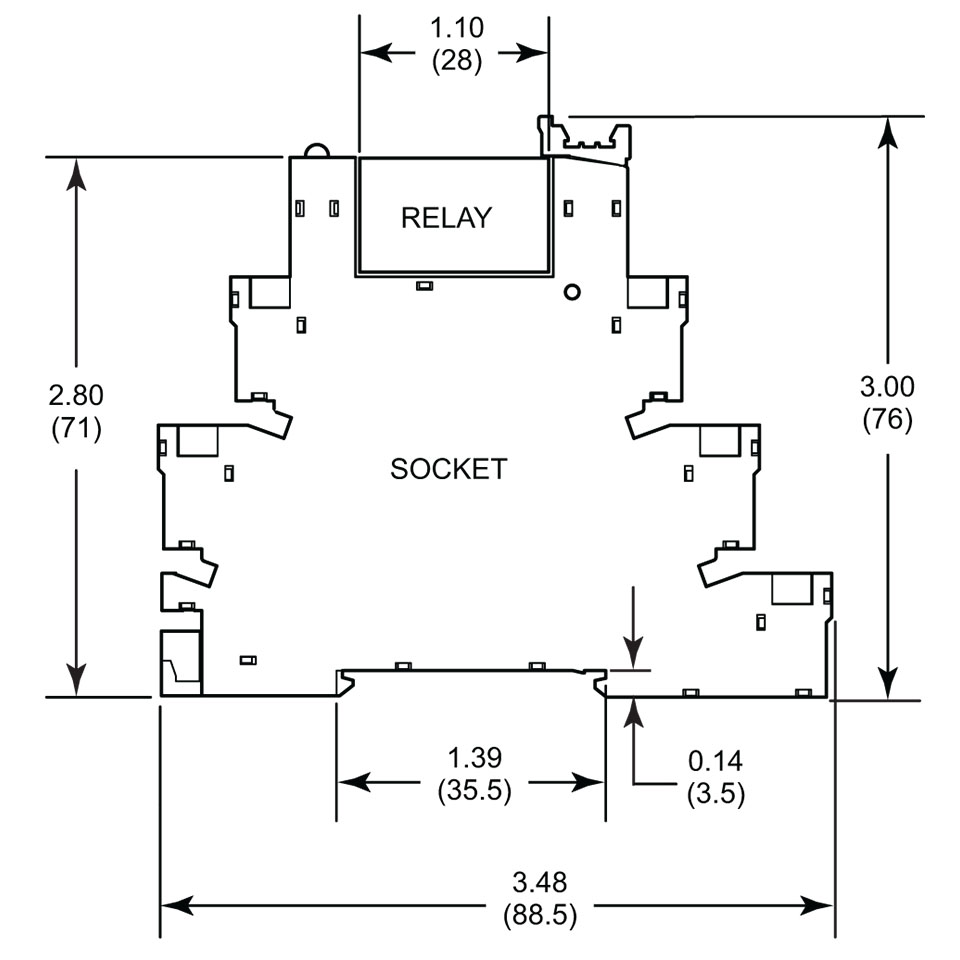

Compact relay assembled with socket for DIN-rail mounting (6 mm wide)
Configuration / Contact Rating:
1 Form C contact 6 Amp 250V AC/30V DC
Application Information:
Load (Burden): Maximum 250 mW
Unit Weight: Approximately 0.07 lb (32 g) relay + socket
Mounting: Relay with included socket mounts on DIN-rail
Output Contacts: 1C: 6A 250V AC/30V DC, 1500 VA/180 W
Life: Mechanical – 10,000,000 operations; Electrical – 30,000 operations
Temperature: 24V AC/DC:-40o C to 70o C (-40o F to 158o F); 120V AC/DC: -40o C to 55o C (-40o F to 131o F)
Approvals:
https://macromatic.com/wp-content/uploads/2024/05/approval-curus.jpg-2-155-1385.webp, https://macromatic.com/wp-content/uploads/2024/05/approval-ce.jpg-2-20-1385.webp
Operations
Macromatic GS Series General Purpose Relays are designed for high density applications while still providing reliability and durability. These slim relays (6 mm wide installed on socket) have contacts rated at 6 Amp 250V AC/ 30V DC. They are rated for 10,000,000 mechanical operations. The GS Series relays carry UL/cUL Safety Approvals and are RoHS compliant. Relay and socket installation provides finger protection, indication of power status and 1 Form C contact and is available in common control voltages.
