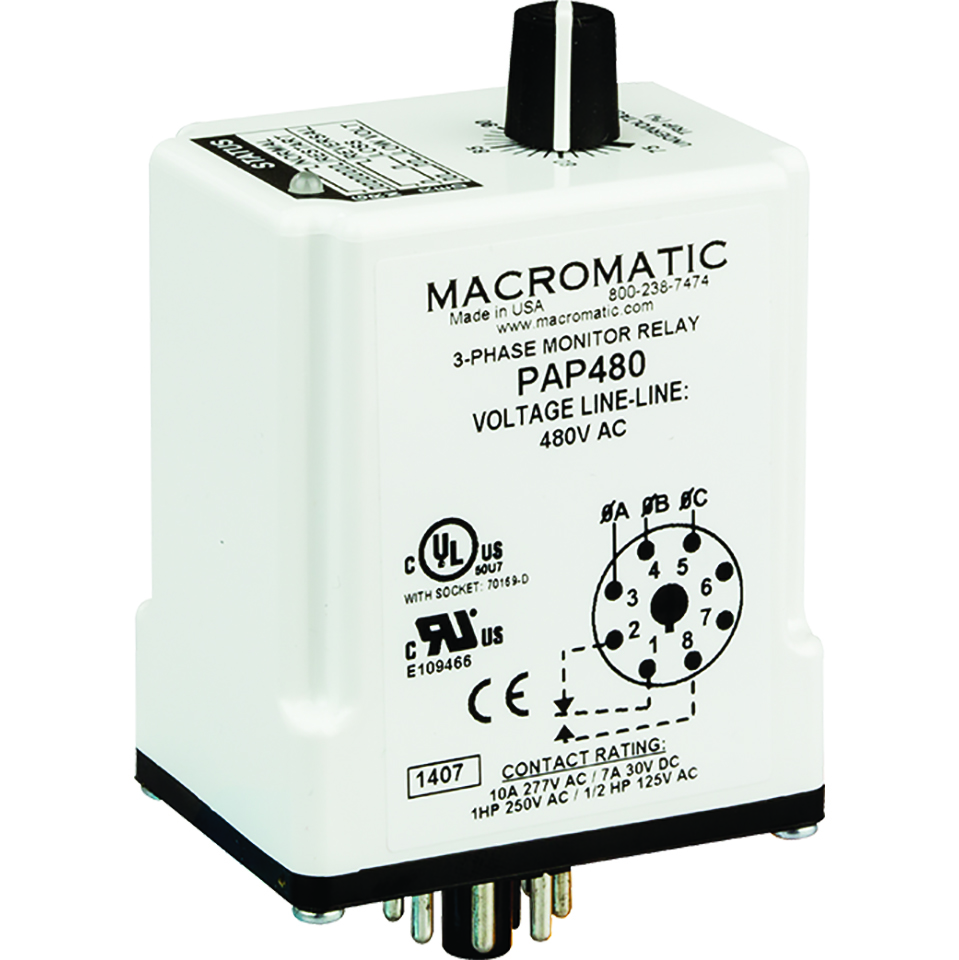

PAP208
Lead Time:Â
7
Communication platform
None
Monitored Voltage:
208V AC
output:
10A SPDT
protection
Phase Loss, Phase Reversal & Undervoltage
ENCLOSURE STYLE
Plug-In
standard modifications
None
$104.48
Description of Function

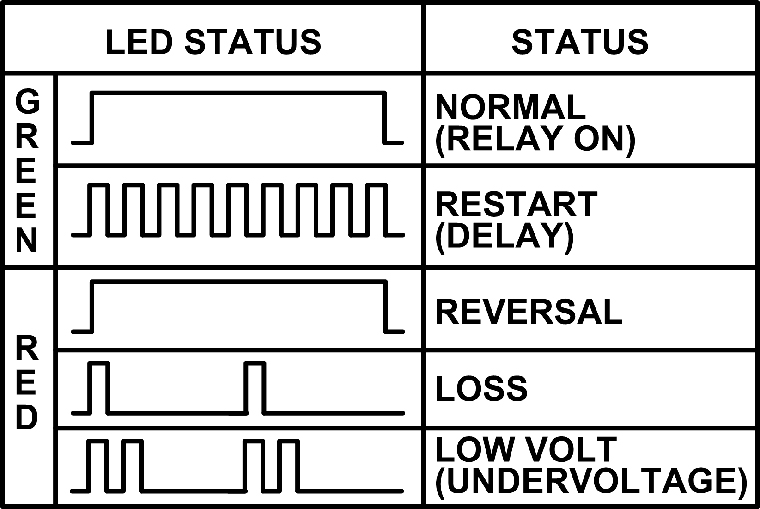

When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized. Any one of three fault conditions will de-energize the relay after a delay. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates normal condition and also provides specific fault indication to simplify troubleshooting (see right).
Product Overview
Features:
Protects against phase loss, phase reversal & undervoltage
Separate 208, 240, 400, 480V & 575V versions
True RMS voltage measurement ensures accurate sensing across more applications
Retains fault indication and continues monitoring all voltages even with a lost phase
Best-in-class phase loss protection
Full fault indication on top of unit for easy troubleshooting

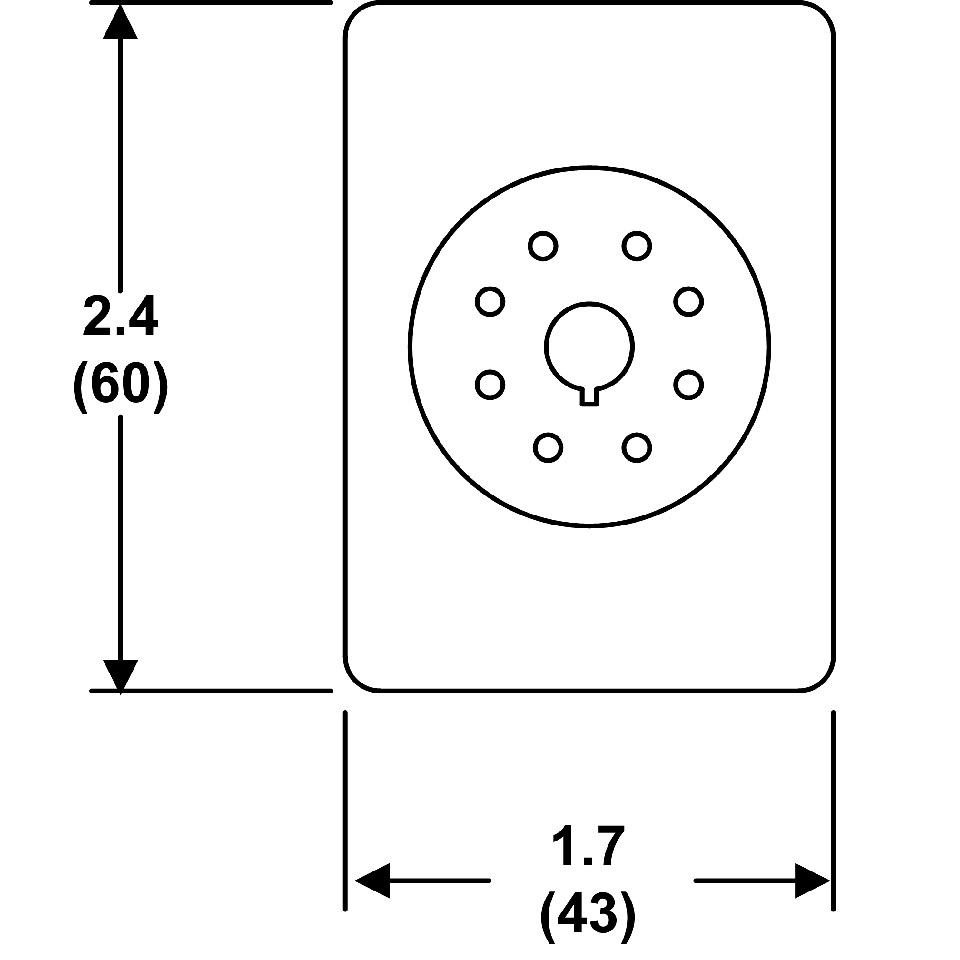

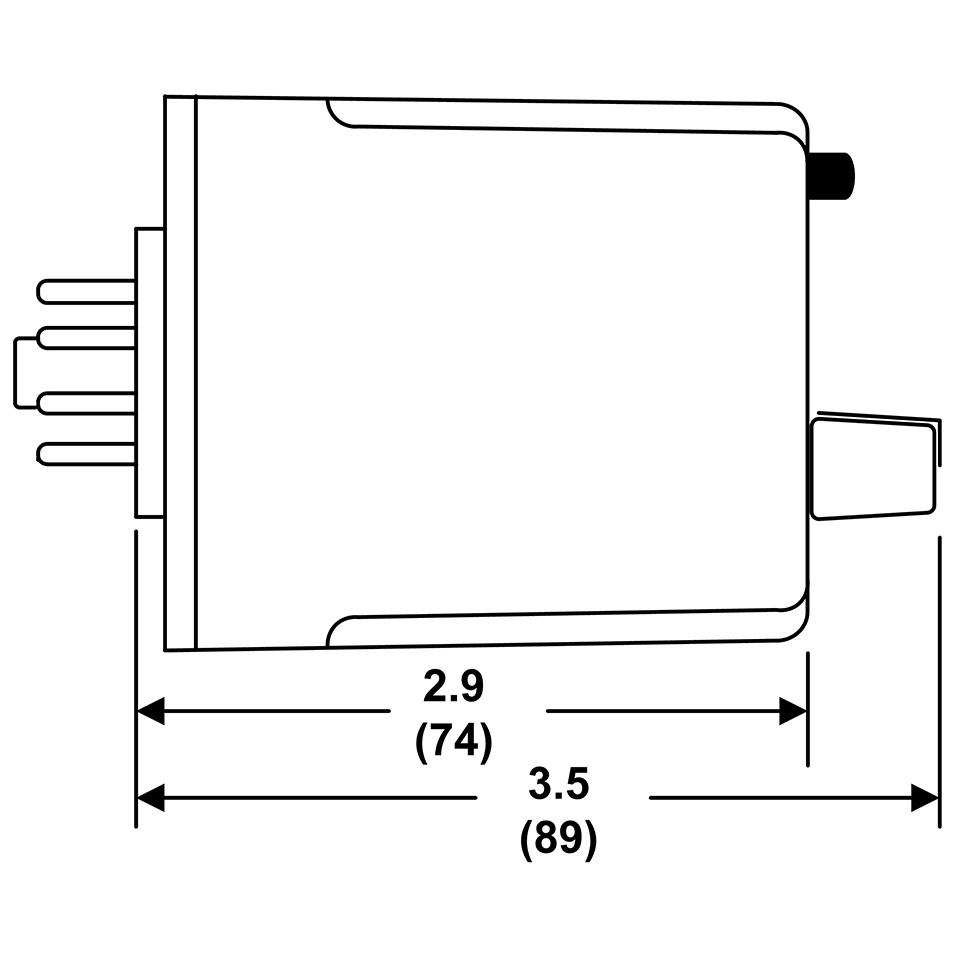

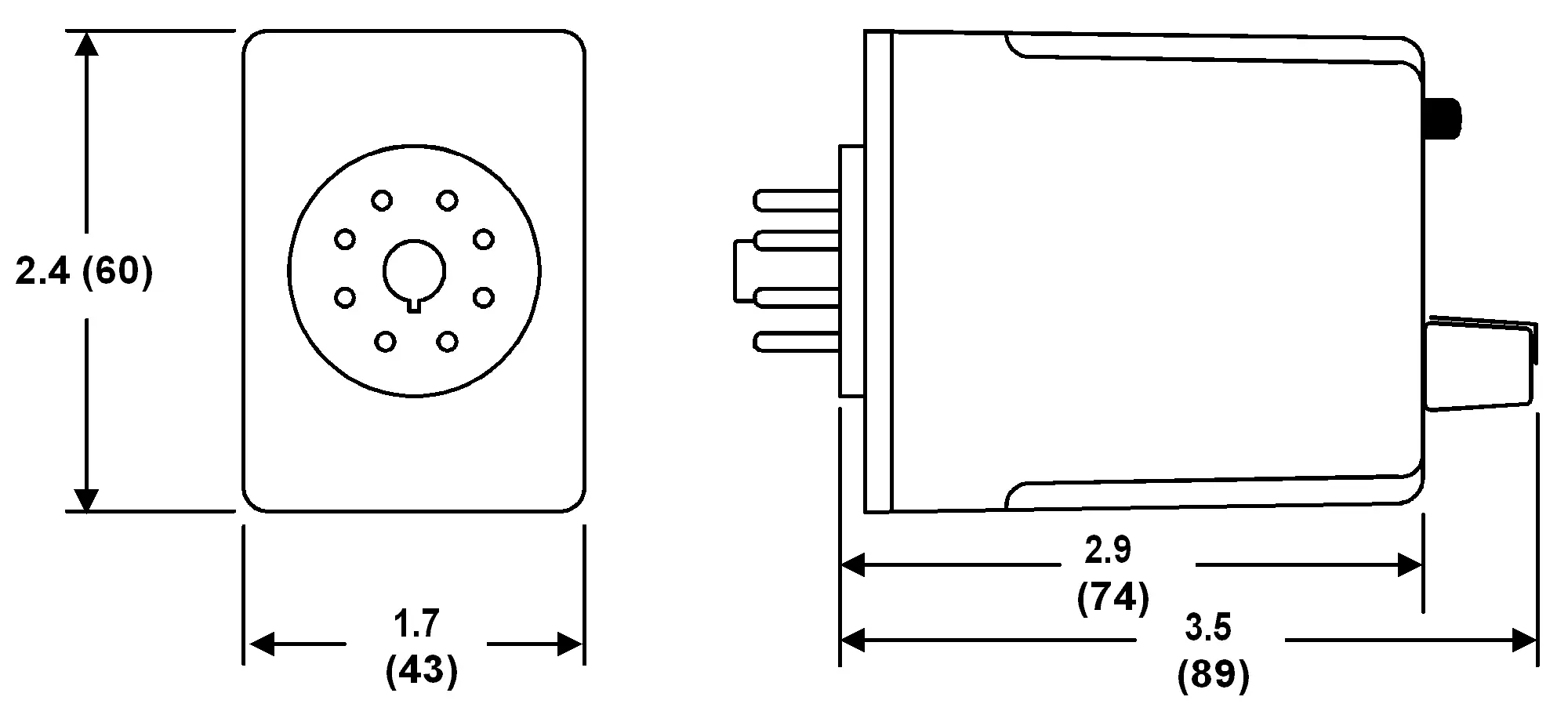

Enclosure Style:
Plug-In

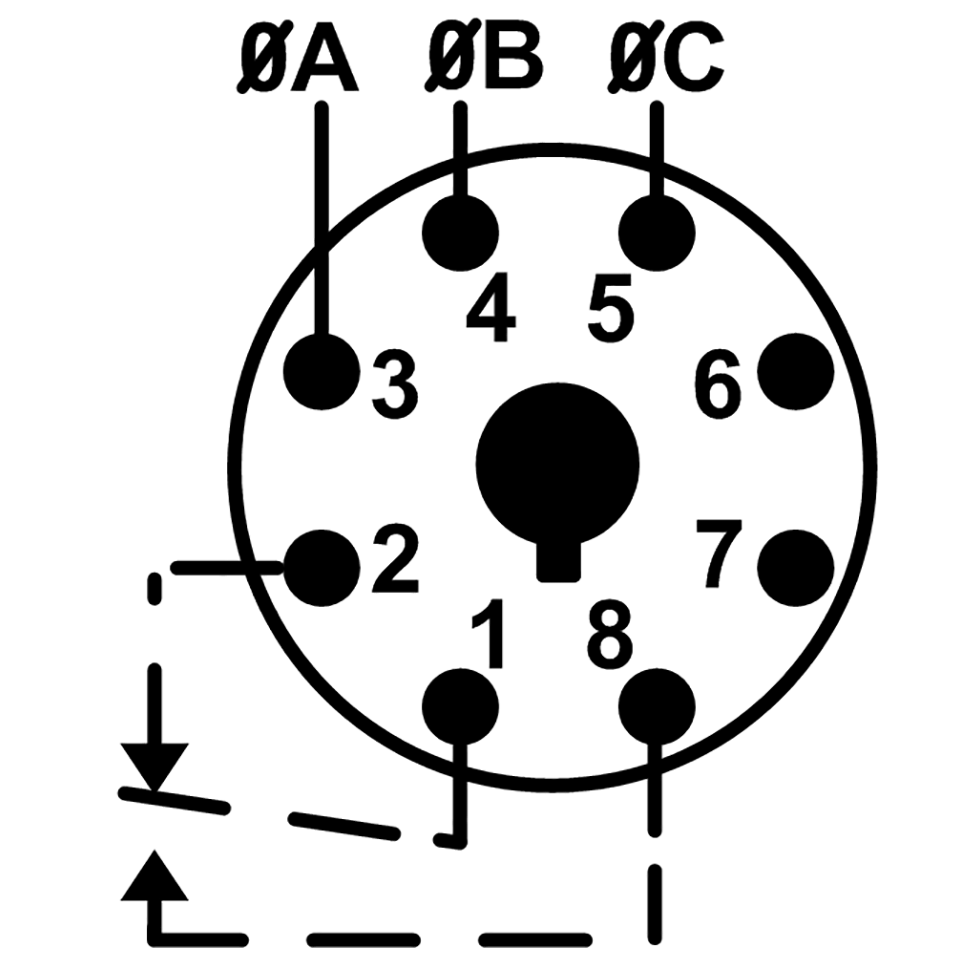

Configuration / Contact Rating:
10A @ 277V AC / 7A @ 30V DC;
1HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
Application Information:
Load (Burden): Less than 40 VA. Response Times: Power Up/Restart After Fault: Fixed at 1 Seconds. Drop-out Due to: Phase Loss & Reversal: Undervoltage: 100ms Fixed. Fixed 4 Seconds. Minimum/Maximum Voltage: 156-198V (PAP208); 180-230V (PAP240); 330-380V (PAP400); 360-460V (PAP480); 431-546V (PAP575), all 50/60Hz. +5%. Reset: Automatic upon correction of fault. Output Contacts: 10A @ 277V AC / 7A @ 30V DC; 1HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty. Life: Mechanical: 10,000,000 operations, Full Load: 100,000 operations. Temperature: -28o to 65o C (-18o to 149o F)
Approvals:
Operations
When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized. Any one of three fault conditions will de-energize the relay after a delay. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates normal condition and also provides specific fault indication to simplify troubleshooting.
