PxE Series

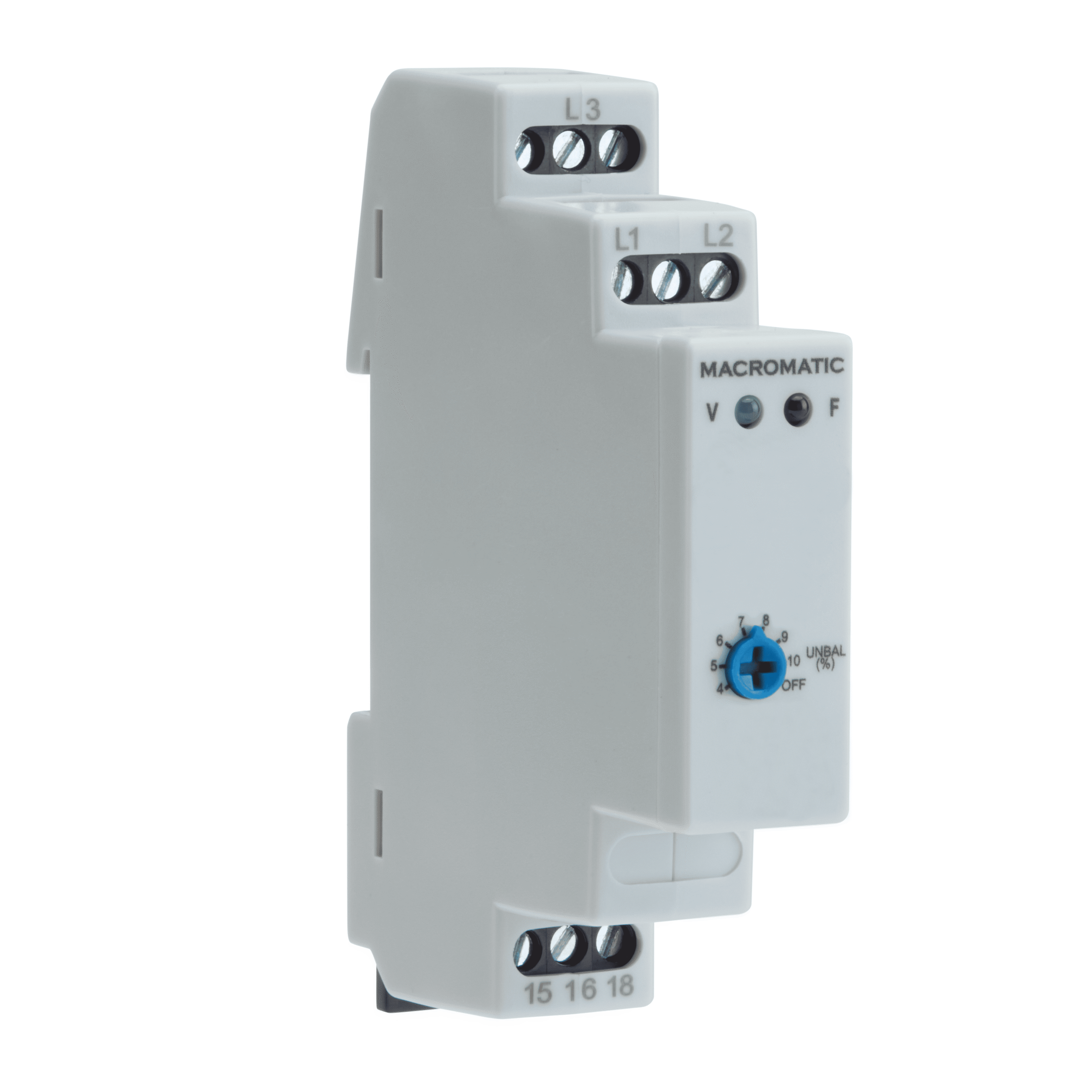

May not be exact product – for reference only.
PBEU
Lead Time:
10 Days
Protection
Phase Loss, Phase Reversal, Phase Unbalance
Nominal Voltage
208-480V AC
output
8A SPDT
Time Delay on Fault
Fixed 0.1 Sec
Restart Delay
1 Sec
mount
35mm Din-Rail
Setting Adjustment
Analog
Options
None
Monitored Voltage
$112.93
Description of Function

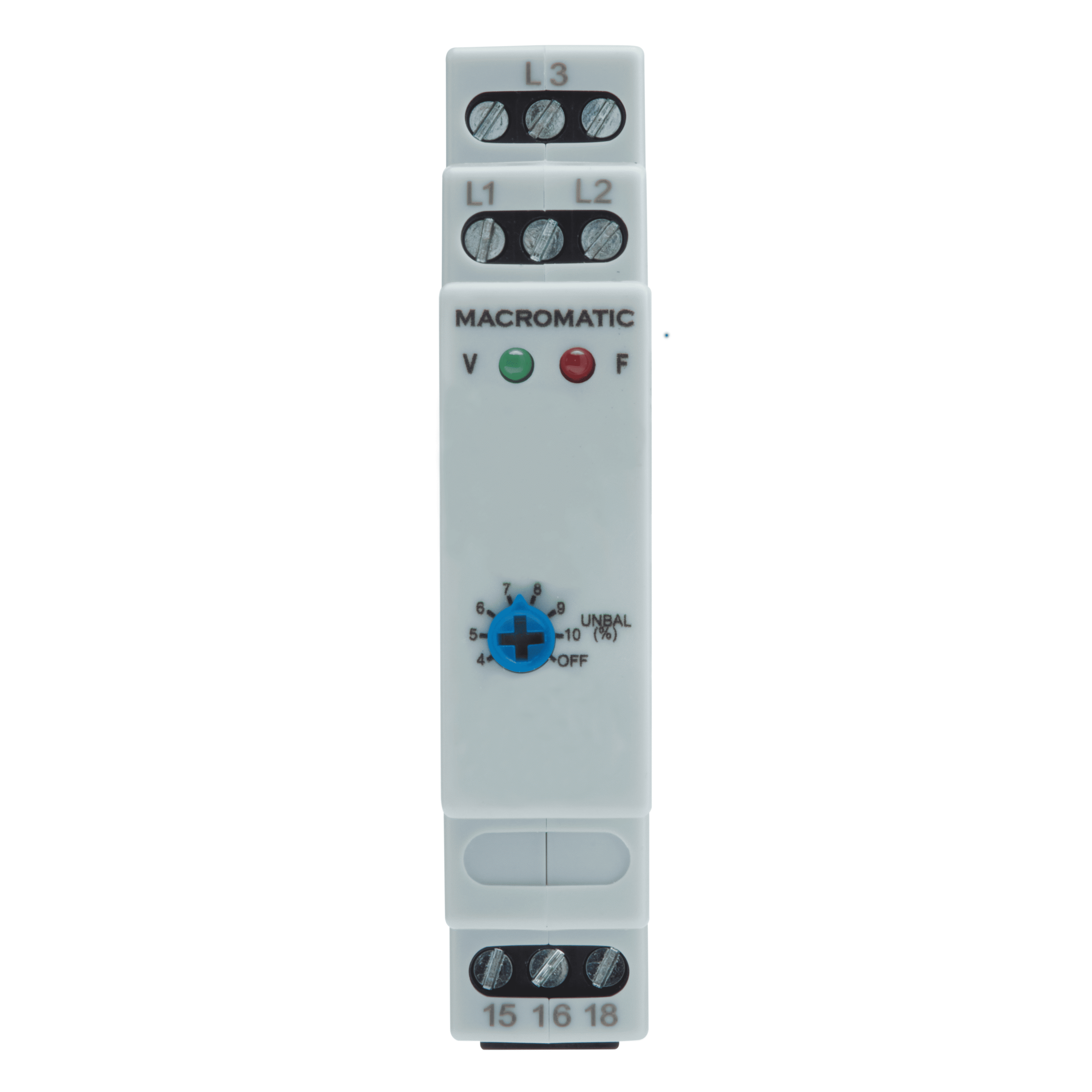

When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized after the Restart Delay is completed. Any protected fault conditions will de-energize the relay after a delay. Re-energization is automatic upon correction of the fault condition.Two LEDs indicates normal condition and also provides specific fault indication to simplify troubleshooting (see right).
Function Chart
Product Overview
Features:
• Protects against phase loss, phase reversal & unbalance
• True RMS voltage measurement ensures accurate sensing across more applications
• Retains fault indication and continues monitoring all voltages even with a lost phase
• Full fault indication on top of unit for easy troubleshooting
• 8A SPDT output contacts
• True RMS voltage measurement ensures accurate sensing across more applications
• Retains fault indication and continues monitoring all voltages even with a lost phase
• Full fault indication on top of unit for easy troubleshooting
• 8A SPDT output contacts
Enclosure Style:
17.5mm
Configuration / Contact Rating:
SPDT 8A @ 250V AC / 8A @ 24V DC
Application Information:
• Power Consumption: Less than 25 VA
• Phase Unbalance: Adjustable from 4-10% unbalance
• Phase Loss and Reversal
• Response Times:
Power Up/Restart After Fault: 1 Second Fixed
Drop-out Due to Fault: Phase Loss: 100ms fixed
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations.
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Phase Unbalance: Adjustable from 4-10% unbalance
• Phase Loss and Reversal
• Response Times:
Power Up/Restart After Fault: 1 Second Fixed
Drop-out Due to Fault: Phase Loss: 100ms fixed
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations.
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
Approvals:
