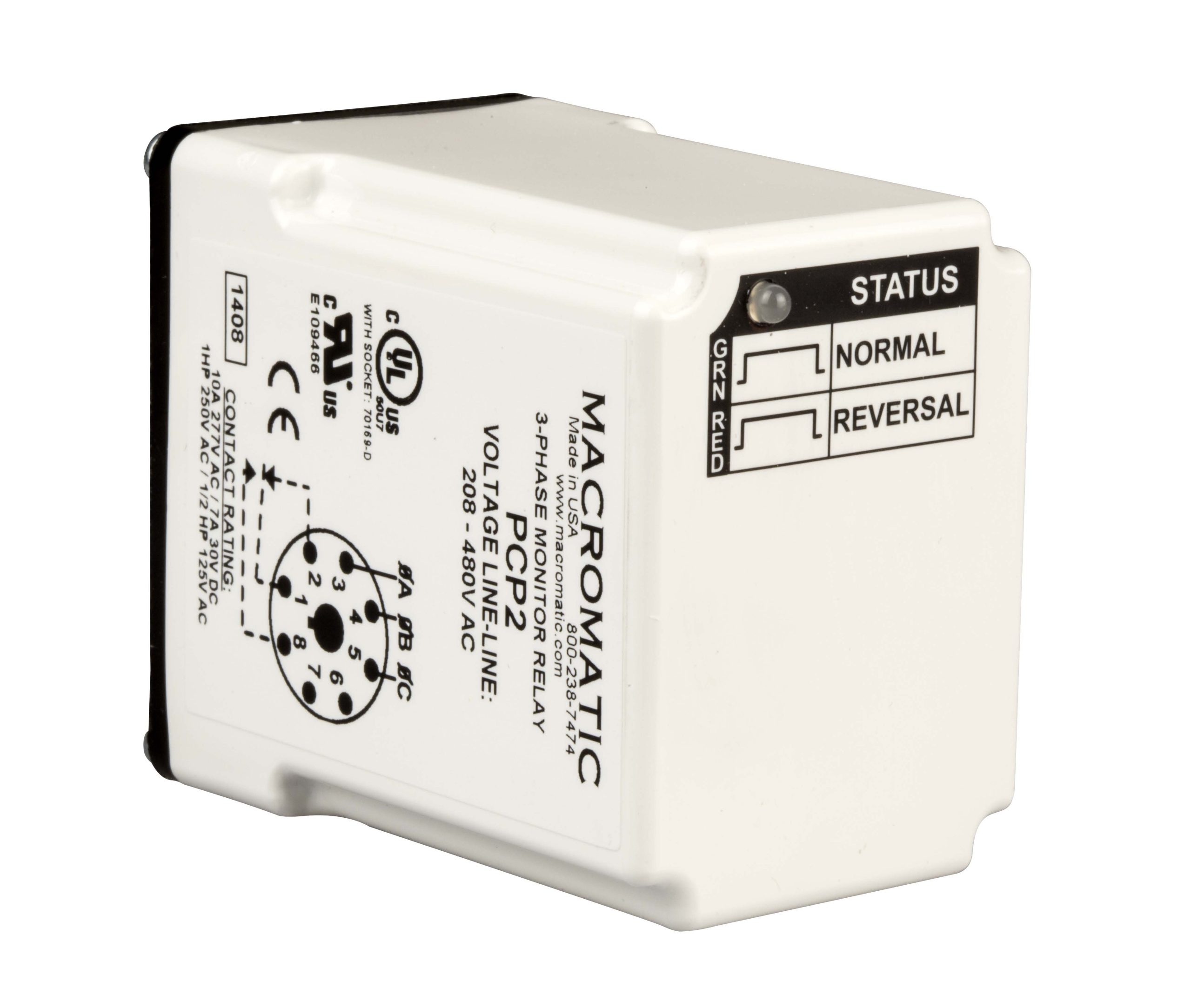

PCP Series
May not be exact product – for reference only.
PCP575
Lead Time:Â
7
Communication platform
None
Monitored Voltage:
460 – 600V AC
output:
10A SPDT
protection
Phase Reversal
ENCLOSURE STYLE
Plug-In
standard modifications
None
$112.31
Description of Function
When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized. An out-of-sequence condition will prevent the relay from energizing on start-up or trip the relay if it occurs when it is energized. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates both a normal condition with the proper phase sequence (solid GREEN) or a fault condition with the phases out of sequence (solid RED)
Product Overview
Features:
Protects against phase reversal only
Universal voltage range of 190-500V-greater range that covers more global applications (separate 575V-only version available)
Full fault indication on top of unit for easy troubleshooting
Enclosure Style:
Plug-In
Configuration / Contact Rating:
SPDT 10 A @ 277V AC / 7A @ 30V DC;1 HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
Application Information:
Load (Burden): Less than 40 VA. Response Times: Power Up/Restart After Fault: Fixed at 1 Seconds. Drop-out Due to: Reversal: 100ms Fixed Minimum/Maximum Voltage: 156-550V (PCPU); 345-660V (PCP575), all 50/60Hz. +5%. Reset: Automatic upon correction of fault. Output Contacts: 10A @ 277V AC / 7A @ 30V DC; 1HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
Life: Mechanical: 10,000,000 operations, Full Load: 100,000 operations Temperature: -28o to 65o C (-18o to 149o F).
Approvals:
Operations
When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized. An out-of-sequence condition will prevent the relay from energizing on start-up or trip the relay if it occurs when it is energized. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates both a normal condition with the proper phase sequence or a fault condition with the phases out of sequence.
