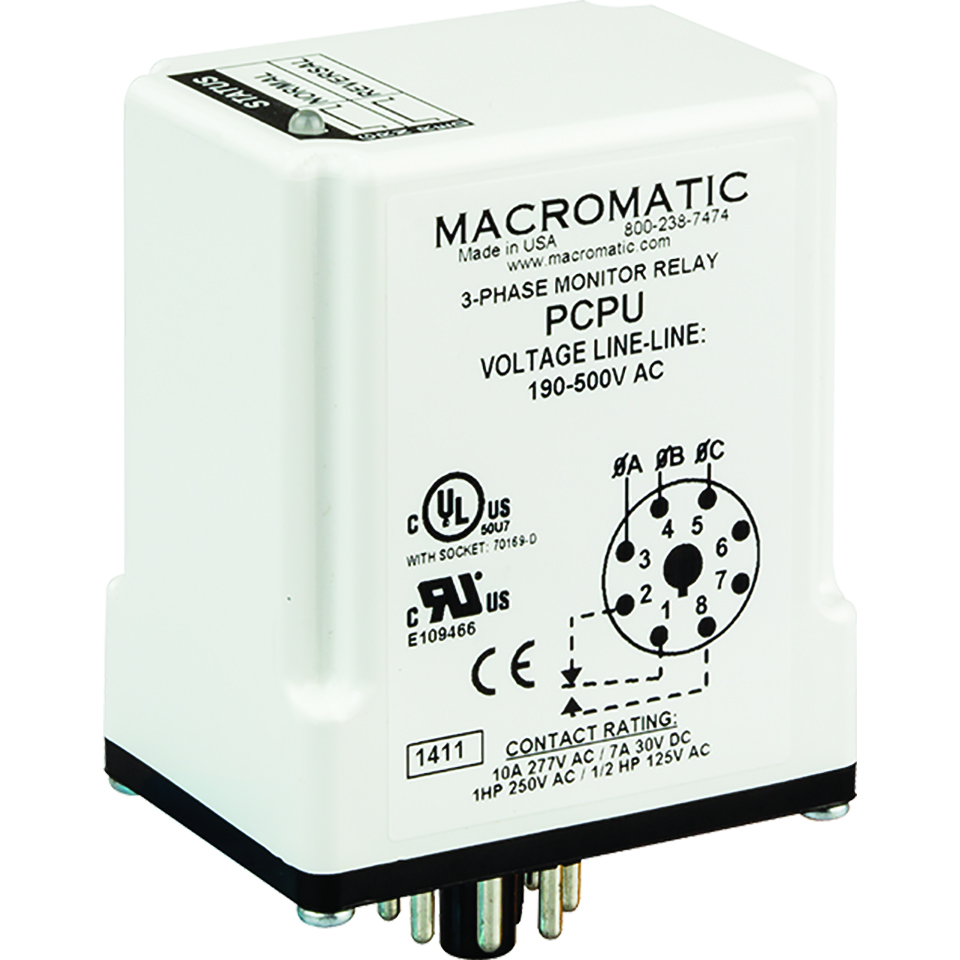

PCP Series
May not be exact product – for reference only.
PCPU
Lead Time:
5
Communication platform
None
Monitored Voltage:
190 – 500V AC
output:
10A SPDT
protection
Phase Reversal
ENCLOSURE STYLE
Plug-In
standard modifications
None
$96.64
Description of Function

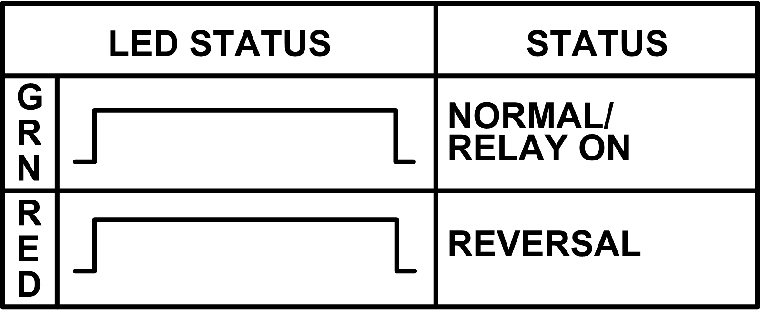

When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized. An out-of-sequence condition will prevent the relay from energizing on start-up or trip the relay if it occurs when it is energized. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates both a normal condition with the proper phase sequence (solid GREEN) or a fault condition with the phases out of sequence (solid RED)
Product Overview
Features:
Protects against phase reversal only
Universal voltage range of 190-500V-greater range that covers more global applications (separate 575V-only version available)
Full fault indication on top of unit for easy troubleshooting
Enclosure Style:
Plug-In
Configuration / Contact Rating:
SPDT 10 A @ 277V AC / 7A @ 30V DC;1 HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
Application Information:

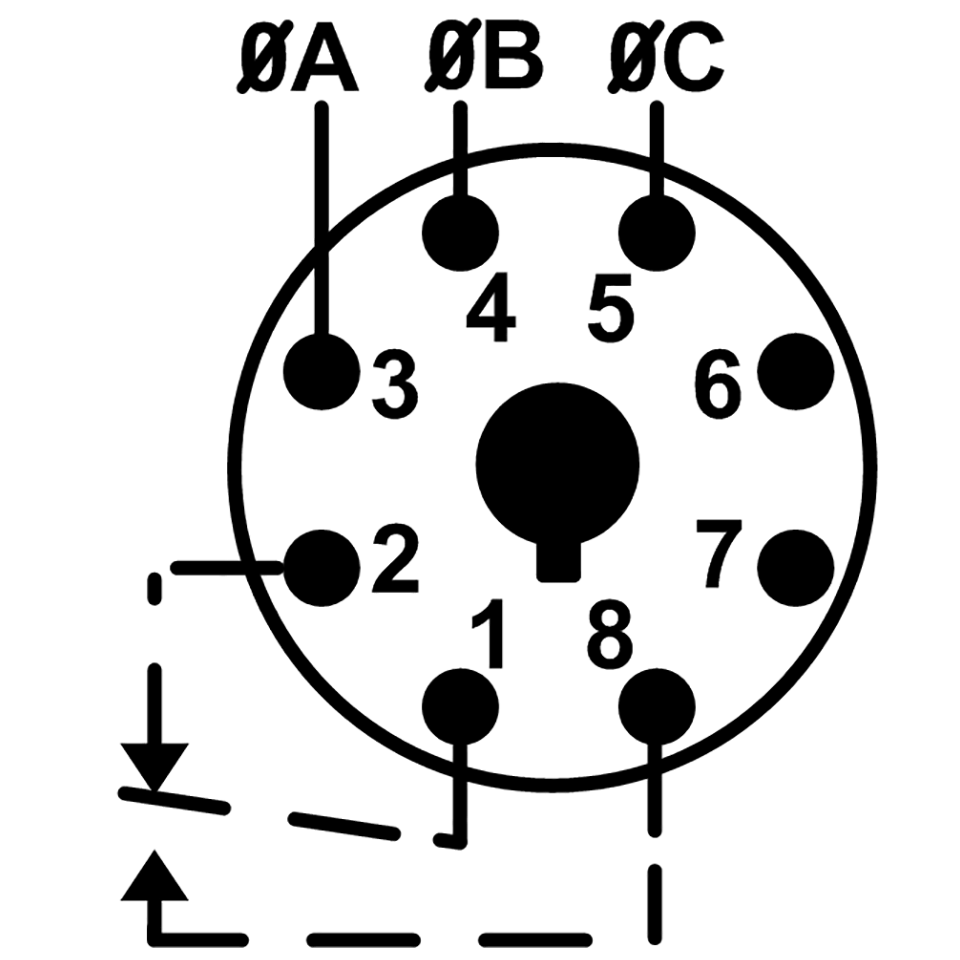

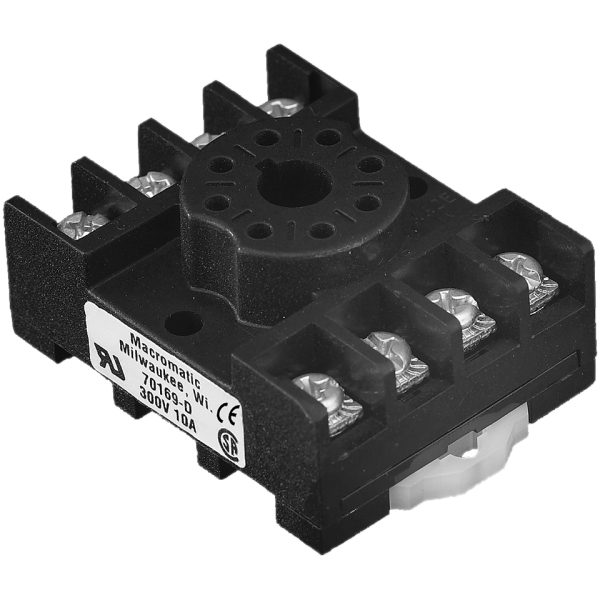

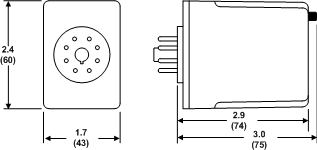

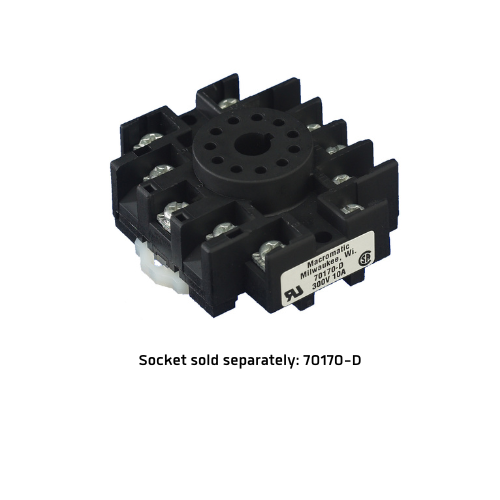

Voltage Requirements: Range (50/60HZ ±5%) – 190-500V AC, 460-600V AC, Min Voltage – 156V AC, 390V AC, Max Voltage – 550V AC, 660V AC, Catalog Number, PCPU, PCP575. Power Consumption: Less than 40VA. Phase Reversal (Sequence) of thw three phases is anything other than A-B-C. It will not wrok on C-B-A. Response Times: Power Up & Restart After Fault: 1 second fixed, Drop-out Due to Phase Reversal: 100ms fixed, Output Contacts: SPDT 10A @ 277V AC / 7A @ 30V DC; 1 HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty. Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations. Temperature: Operating: -28° to 65°C (-18° to 149°F), Storage: -40° to 85°C (-40° to 185°F), Mounting: Uses an 8 pin octal socket. Requires a 600V-rated socket when used on system voltages greater than 300V such as Macromatic Catalog Number 70169-D. Reset: Automatic upon correction of fault.
Approvals:
Operations
When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized. An out-of-sequence condition will prevent the relay from energizing on start-up or trip the relay if it occurs when it is energized. Re-energization is automatic upon correction of the fault condition. A bi-color status LED indicates both a normal condition with the proper phase sequence or a fault condition with the phases out of sequence.
