PTA Series
May not be exact product – for reference only.
PTA2001M
Lead Time:
10 Days
Function
Percentage Timer
Control Voltage
120V AC
output
10A SPNO
timing range
0 – 1 Min
MOUNT
4 Screw Terminal Block
Setting Adjustment
Analog
options
Memory
Remote potentiometer
Remote potentiometer 2
$123.27
Description of Function
Upon initial application of control voltage, the output is energized and time delay (t1) begins. Time Delay (t1) is adjustable as a percentage of the overall cycle time (t2). At the end of the time delay (t1), the output is de-energized for the remainder of overall cycle (t2-t1). The sequence then repeats until input voltage is removed. If control voltage is removed and reapplied, the timing cycle will continue from where it left off when the input voltage was removed. A setting of 100% energizes the output continuously while a setting of 0% de-energizes the output continuously.

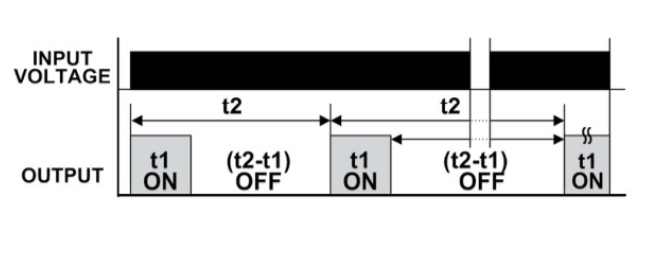

Function Chart
Product Overview
Features:
• Industry-standard panel cutout and mounting pattern
• Retains timing sequence in the event of power loss
• Onboard potentiometer for easy time delay adjustment
• LED indicates relay status
• 10A SPNO output
• Terminal block makes wiring easier from top or bottom
• Secure termination with bare wire or crimp terminals
• Touch-safe terminal cover available – Macromatic P/N 70600
• Mounting hardware included
• Retains timing sequence in the event of power loss
• Onboard potentiometer for easy time delay adjustment
• LED indicates relay status
• 10A SPNO output
• Terminal block makes wiring easier from top or bottom
• Secure termination with bare wire or crimp terminals
• Touch-safe terminal cover available – Macromatic P/N 70600
• Mounting hardware included
Enclosure Style:
Panel Mount
Configuration / Contact Rating:
SPNO 10A @ 240V AC / 7A @ 28V DC, 1/4 HP @ 120V AC
Application Information:
• Voltage Tolerance: +10/-15% of nominal at 50/60 Hz.
• Load (Burden): Maximum of 3 VA for all voltages.
• Setting Accuracy: +/- 2%
• Setting Precision: +/- 1% of total cycle time
• Dial Resolution: Dial settings marked in 1% increments
• Repeat Accuracy: +0.1% or +/- 0.04 seconds, whichever is greater.
• Reset Time: 300ms
• Start-up Time: 0.05 Seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Mounting: Panel Mount with supplied hardware
• Termination:
Pressure Clamp Screw Terminals
#12-22 AWG Wire, Solid, Stranded Wire
Recommended Tightening Torque of 7 in-lbs. (12 in-lbs maximum)
• Load (Burden): Maximum of 3 VA for all voltages.
• Setting Accuracy: +/- 2%
• Setting Precision: +/- 1% of total cycle time
• Dial Resolution: Dial settings marked in 1% increments
• Repeat Accuracy: +0.1% or +/- 0.04 seconds, whichever is greater.
• Reset Time: 300ms
• Start-up Time: 0.05 Seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Mounting: Panel Mount with supplied hardware
• Termination:
Pressure Clamp Screw Terminals
#12-22 AWG Wire, Solid, Stranded Wire
Recommended Tightening Torque of 7 in-lbs. (12 in-lbs maximum)
Approvals:
Operations
