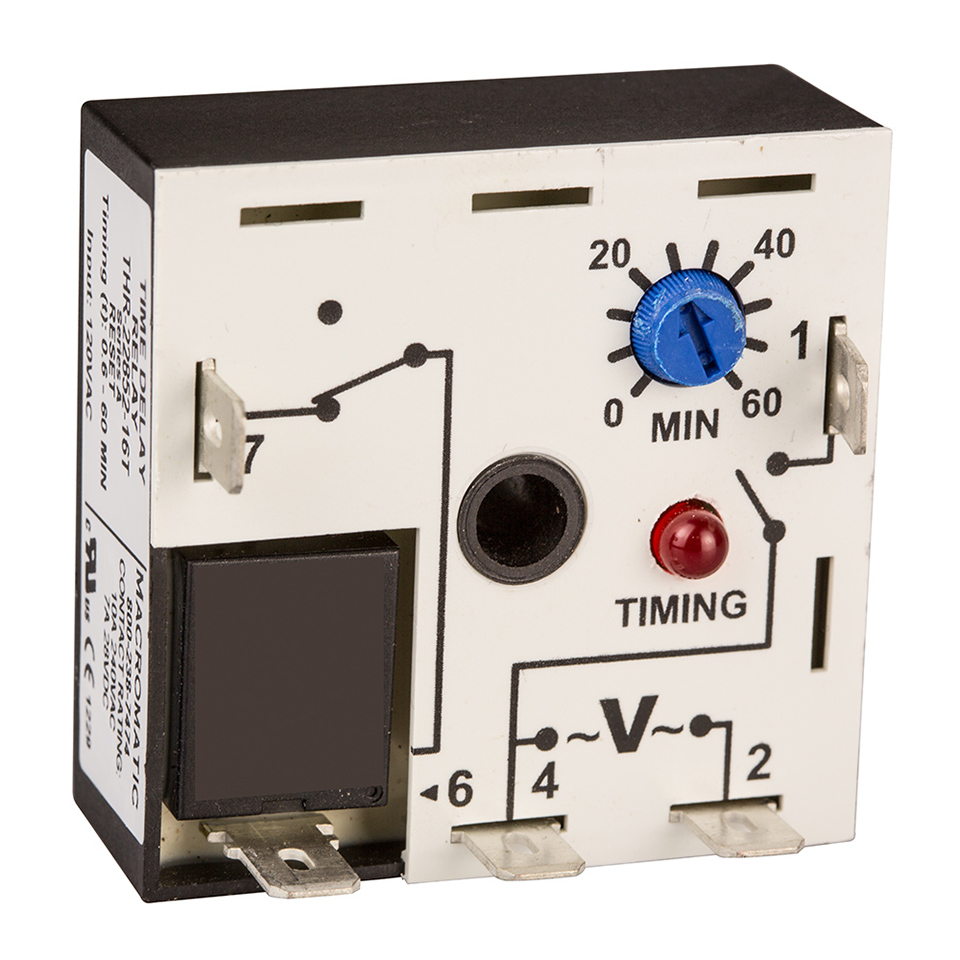

RT Series
May not be exact product – for reference only.
RT16A-16
Lead Time:
10 Days
Function
Reset
Control voltage
240V AC
output
10A SPNO
timing range
0.6 – 60 Min
MOUNT
Single Screw Mounting
Setting Adjustment
Analog
Options
Memory
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER
$93.10
Description of Function
Upon application of the control voltage, the time delay (t) begins. If a reset signal is applied during time delay (t), the time delay (t) is reset. At the end of time delay (t), the output relay is energized and the N.C. contact opens. If a reset signal is applied after time delay (t) has elapsed, the time delay (t) is reset and relay output is de-energized. Upon removal of the reset signal either during time delay (t) or after the time delay (t) has elapsed, the time delay (t) is reset to zero. The timer uses the NC contact which opens on timout. The time delay (t) and relay status are retained using non-volatile memory in the event of a power loss using the RESET function.

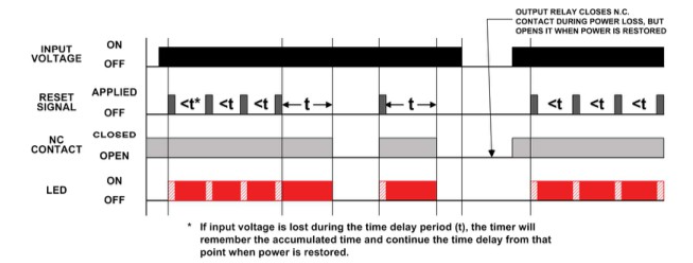

Function Chart
Product Overview
Features:
• Compact design saves panel space
• Encapsulated for harsh environments
• Easy surface mount installation with a single bolt or screw
• Convenient termination with .25″ quick connect terminals
• Retains timing sequence in the event of a power loss
• LED indication for timing and relay status
• Variety of time ranges
• Onboard potentiometer for easy time delay adjustment
• Encapsulated for harsh environments
• Easy surface mount installation with a single bolt or screw
• Convenient termination with .25″ quick connect terminals
• Retains timing sequence in the event of a power loss
• LED indication for timing and relay status
• Variety of time ranges
• Onboard potentiometer for easy time delay adjustment
Enclosure Style:
Encapsulated
Configuration / Contact Rating:
SPNO 10A @ 240VAC / 7A @ 28VDC , 1/4 HP @ 120VAC (N.O.)
Application Information:
• Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz.
• Load (Burden): Maximum of 2 VA.
• Setting Accuracy:
Maximum Setting +5%, -0%
Minimum Setting: +0%, -50%
• Repeat Accuracy: +0.1% or +/-0.04 seconds, whichever is greater.
• Reset Time: 100ms
• Start-up Time: (Time from when power is applied until unit is timing): 0.05 Seconds
• Maintain Function Time: (Time unit continues to operate after power is removed): 0.1 Seconds
• Minimum Required Trigger Switch Closure Time: 50 ms
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Mounting: Surface with one #8 or #10 screw or on 35mm DIN rail with macromatic P/N 70500
• Termination: 0.25″ male quick connect terminals
• Load (Burden): Maximum of 2 VA.
• Setting Accuracy:
Maximum Setting +5%, -0%
Minimum Setting: +0%, -50%
• Repeat Accuracy: +0.1% or +/-0.04 seconds, whichever is greater.
• Reset Time: 100ms
• Start-up Time: (Time from when power is applied until unit is timing): 0.05 Seconds
• Maintain Function Time: (Time unit continues to operate after power is removed): 0.1 Seconds
• Minimum Required Trigger Switch Closure Time: 50 ms
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
• Mounting: Surface with one #8 or #10 screw or on 35mm DIN rail with macromatic P/N 70500
• Termination: 0.25″ male quick connect terminals
Approvals:
