TA Series
May not be exact product – for reference only.

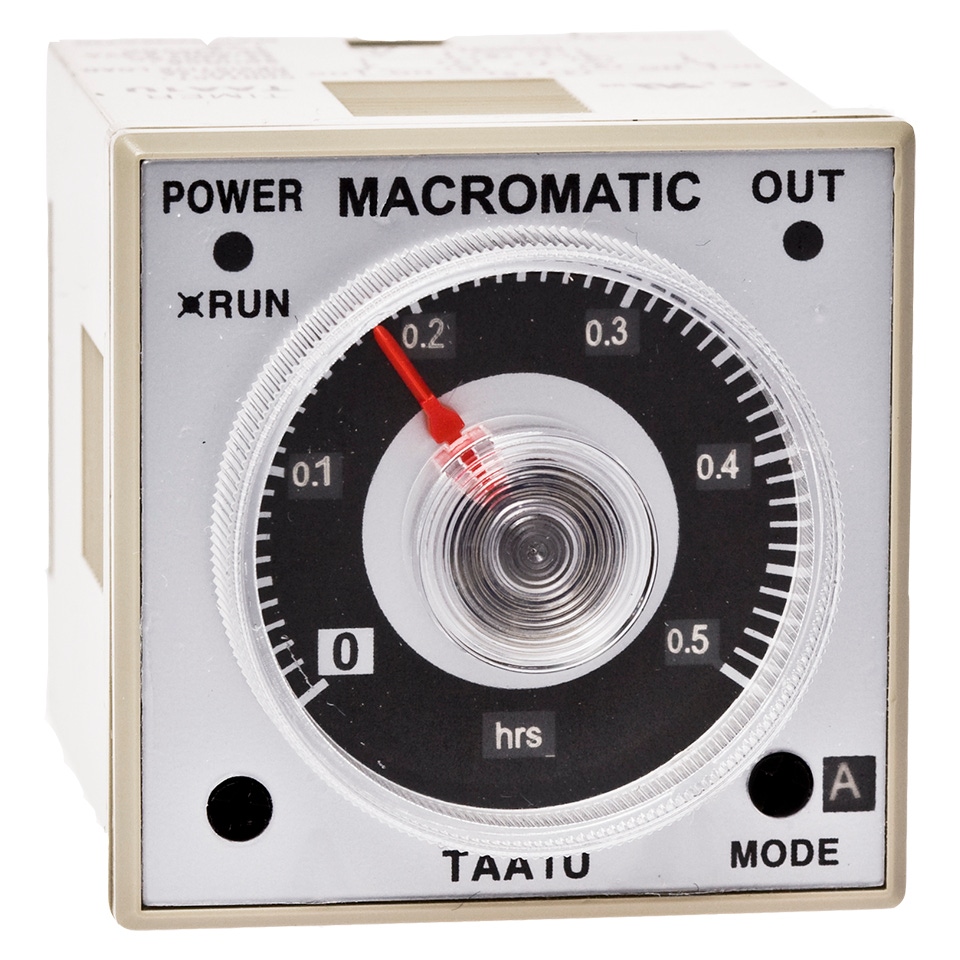

TAA1U
Lead Time:
Function
CONTROL VOLTAGE
output
TIMING RANGE
TIMING RANGE 2
MOUNT
Setting Adjustment
Options
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER 2
$86.34
Description of Function
Function Chart
Product Overview
Features:
• Large dial for setting of time delay
• 50ms to 100 Hour programmable timing range
• Universal 100-240V AC / 24-240V DC input voltage

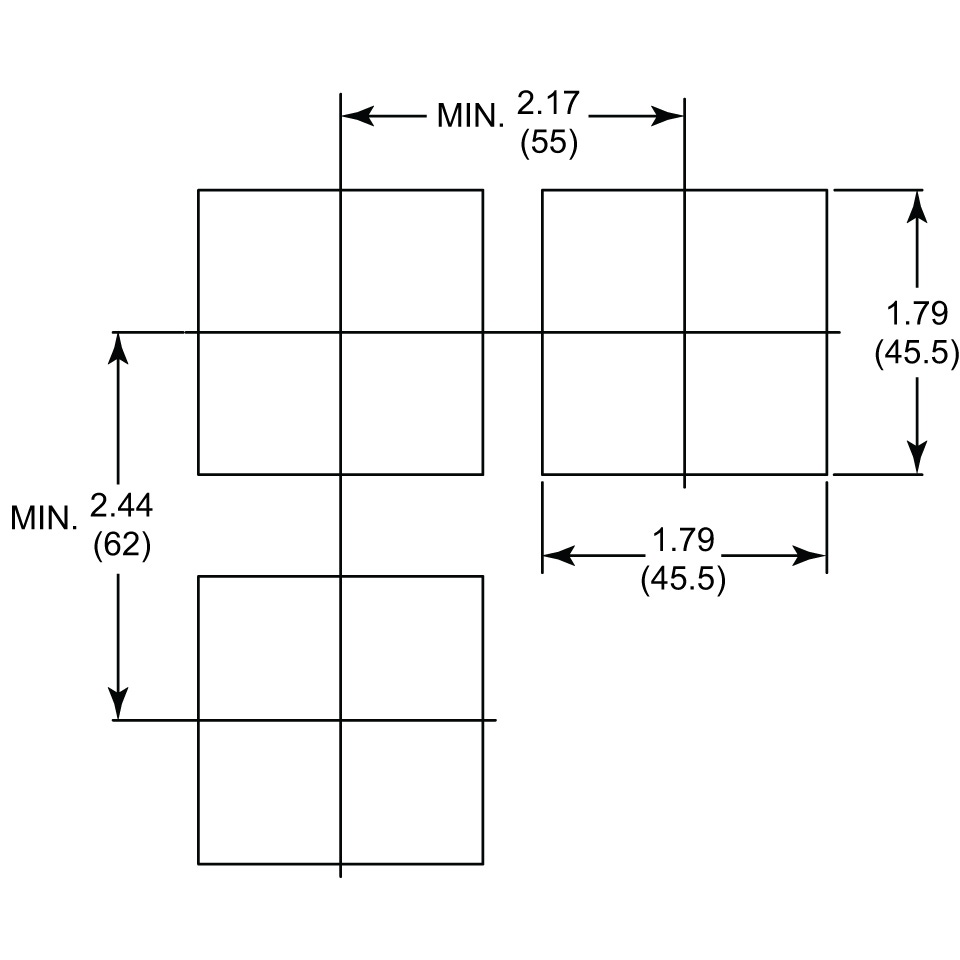

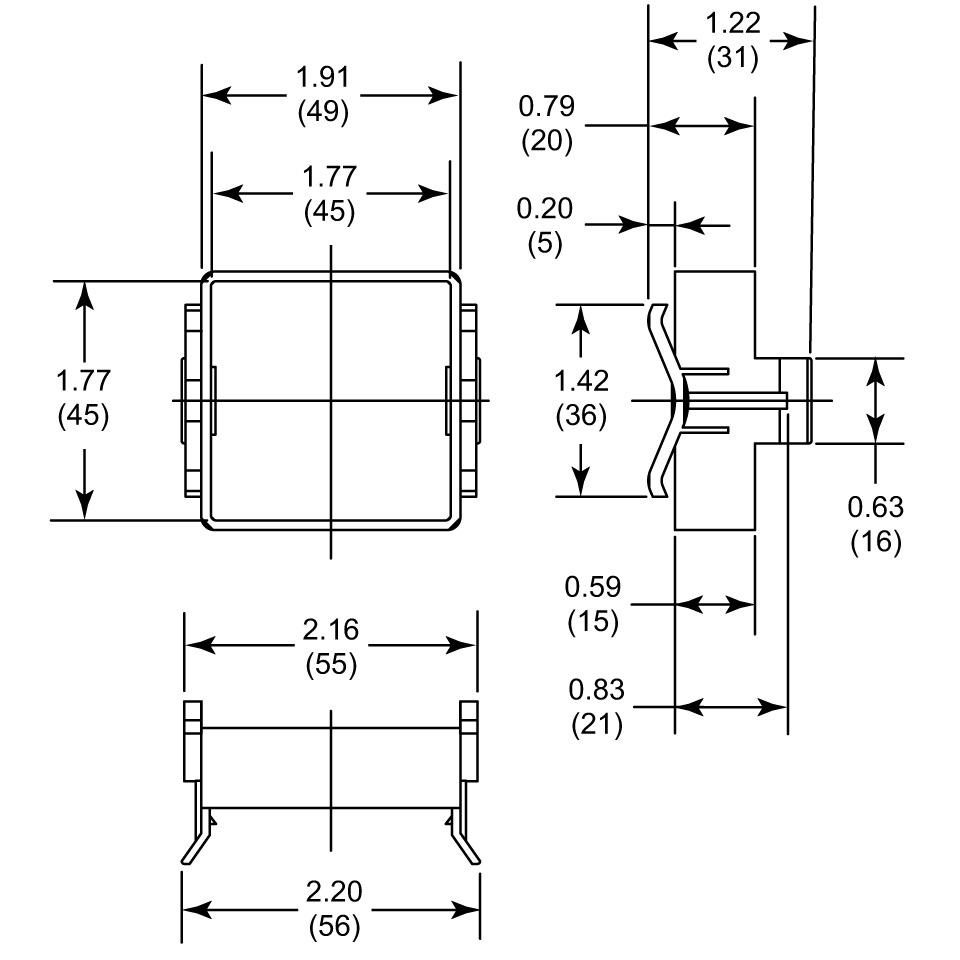

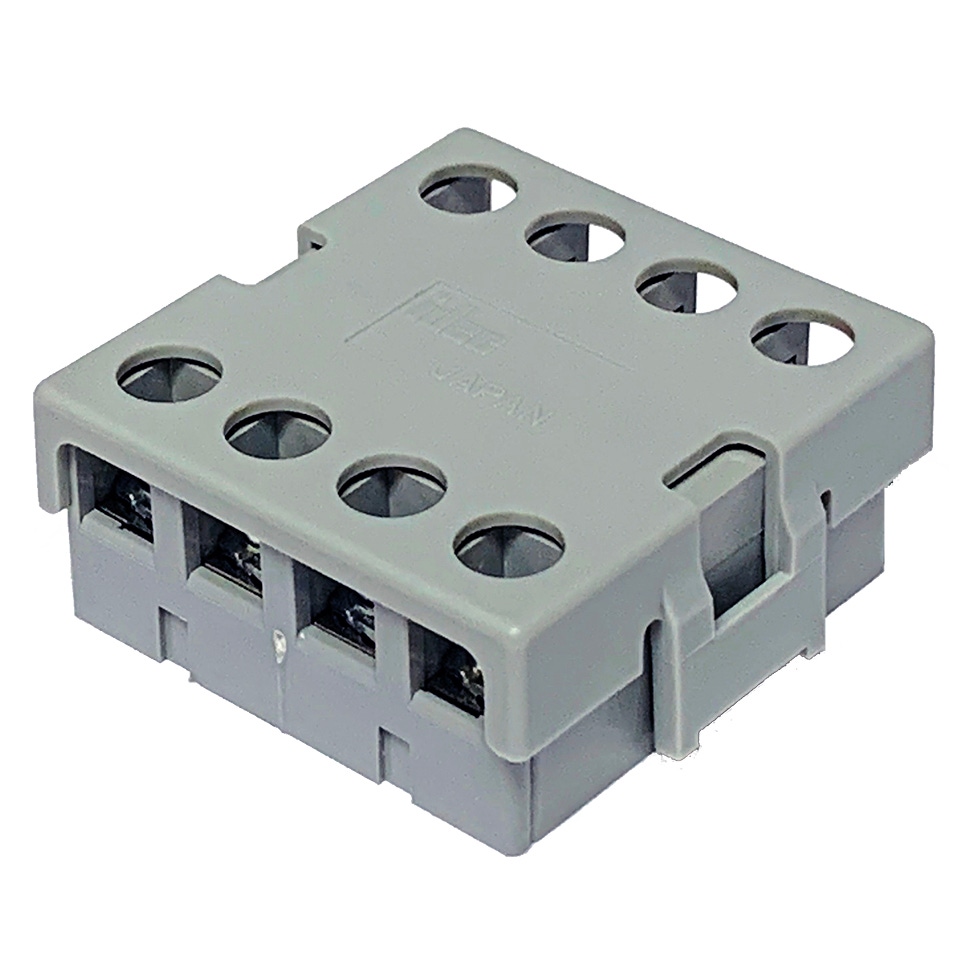

• Panel, track, or surface mounting
• 1/16 DIN style case (comes with panel-mounting adapter)

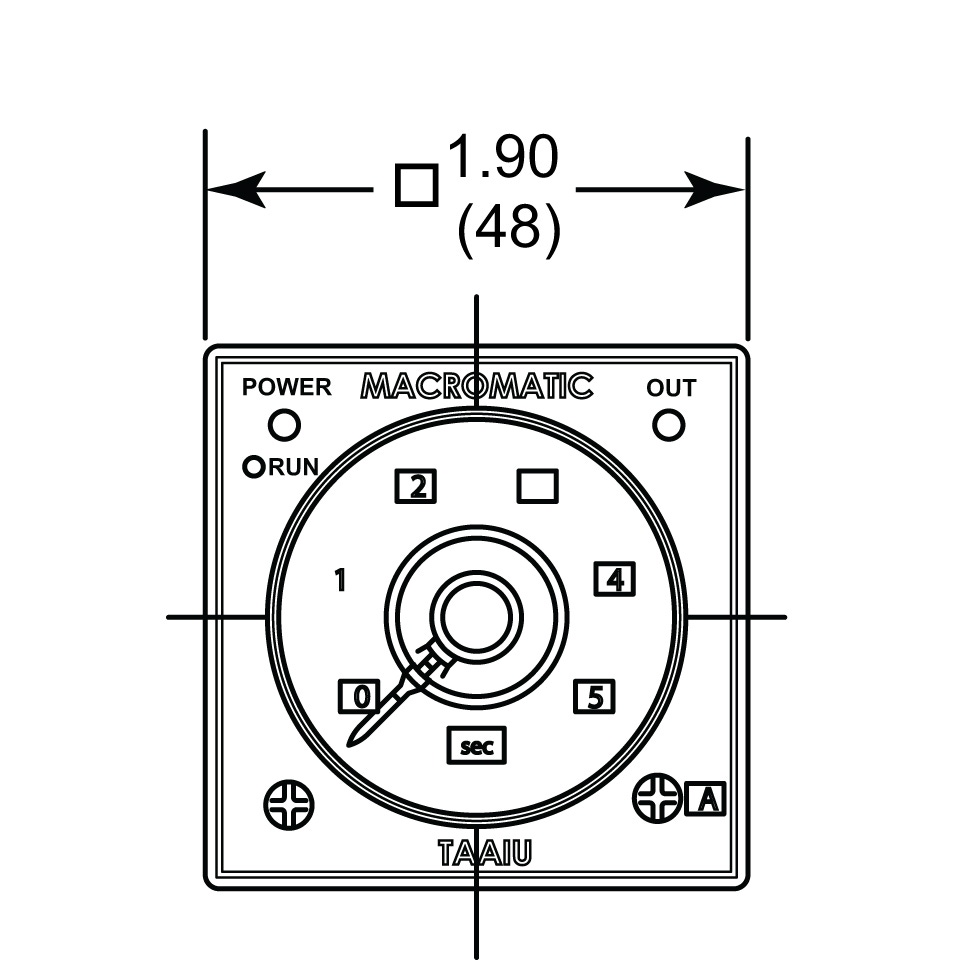

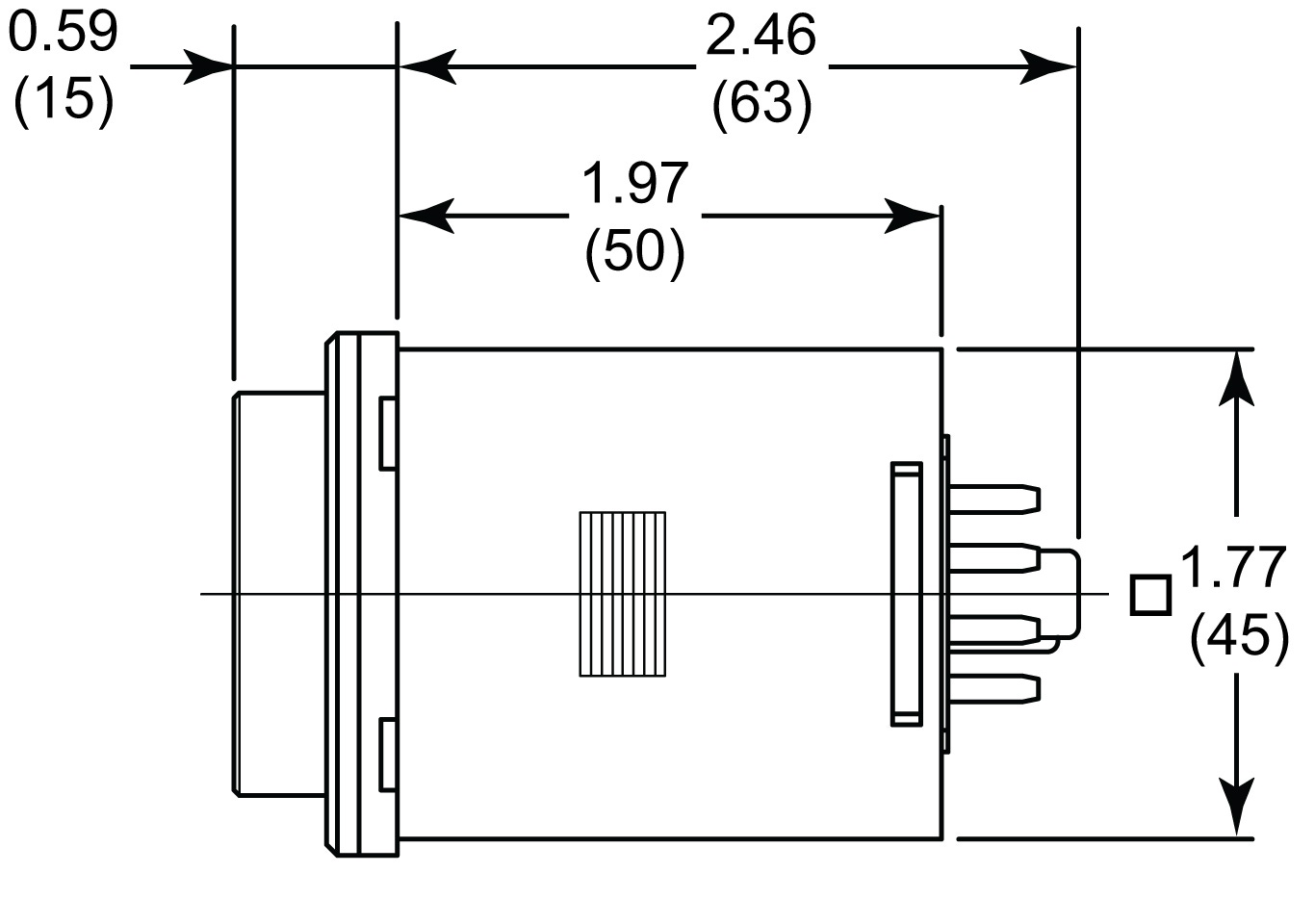

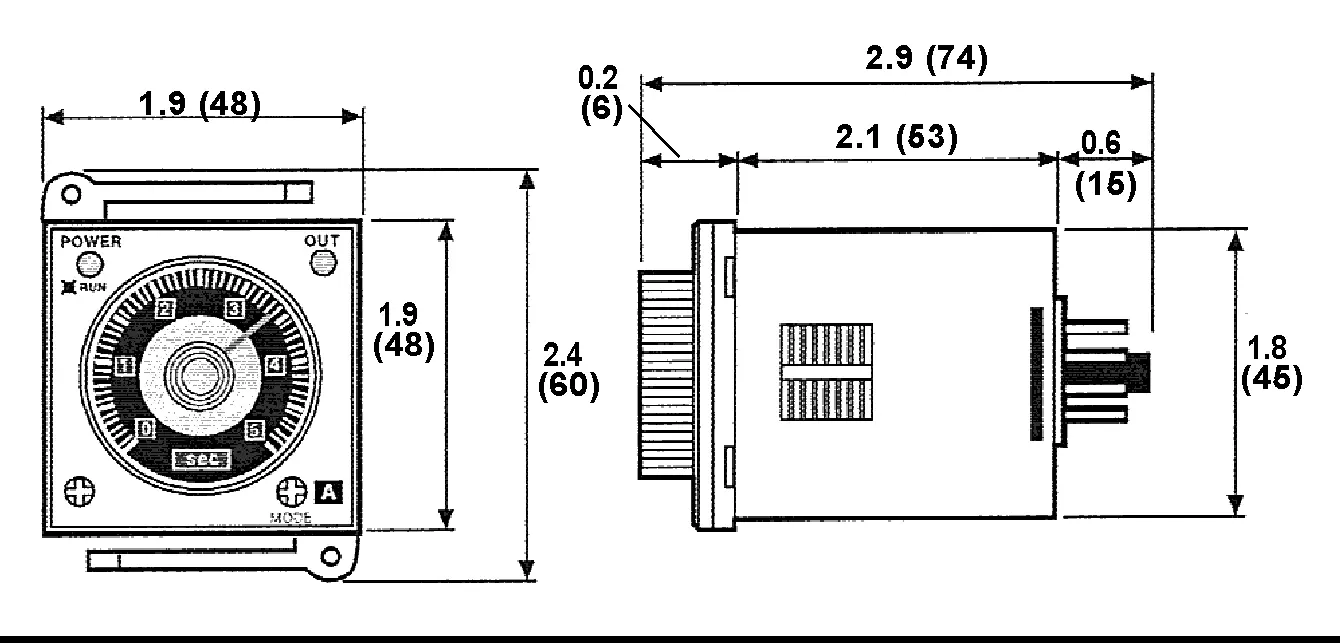

Enclosure Style:

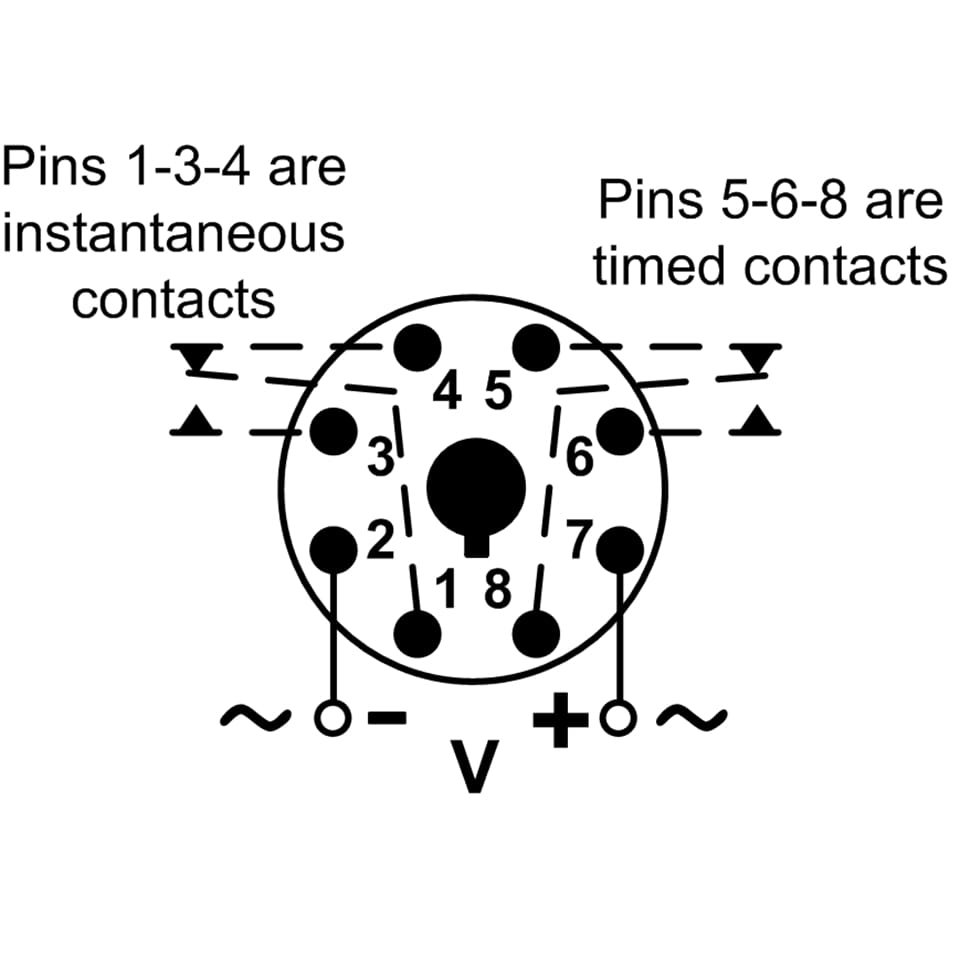

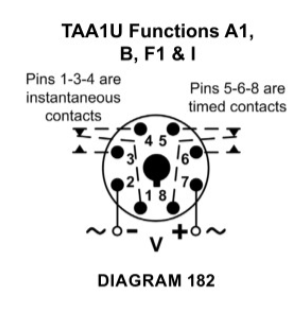

Configuration / Contact Rating:
Application Information:
• Load (Burden): Less than 2.5 VA
• Repeat Accuracy: ±0.01% or ±0.05 seconds, whichever is greater
• Recycle Time: 0.2 Seconds
• Temperature:
Operating: -10° to 55°C (14° to 131°F)
Storage: -40° to 85°C (-40° to 185°F)
• Enclosure Protection Rating: IP40
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
Approvals:
Operations
Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
