TD-8 Series

TD-81662-42
TD-81662-42 - Image 2
TD-81662-42 - Image 3

May not be exact product – for reference only.

TD-81662-42

Lead Time:

7 Days

Function

Off Delay

CONTROL VOLTAGE

120V AC/DC

output

10A SPDT

TIMING RANGE

10 – 10,230 Sec

TIMING RANGE 2

None

MOUNT

8-Pin Socket

Setting Adjustment

Digital

Options

None

REMOTE POTENTIOMETER

None

REMOTE POTENTIOMETER 2

None

$88.31

Description of Function

Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized. Upon removal of the trigger, the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Any application of the trigger during the time delay will reset the time delay (t) and the output remains energized.

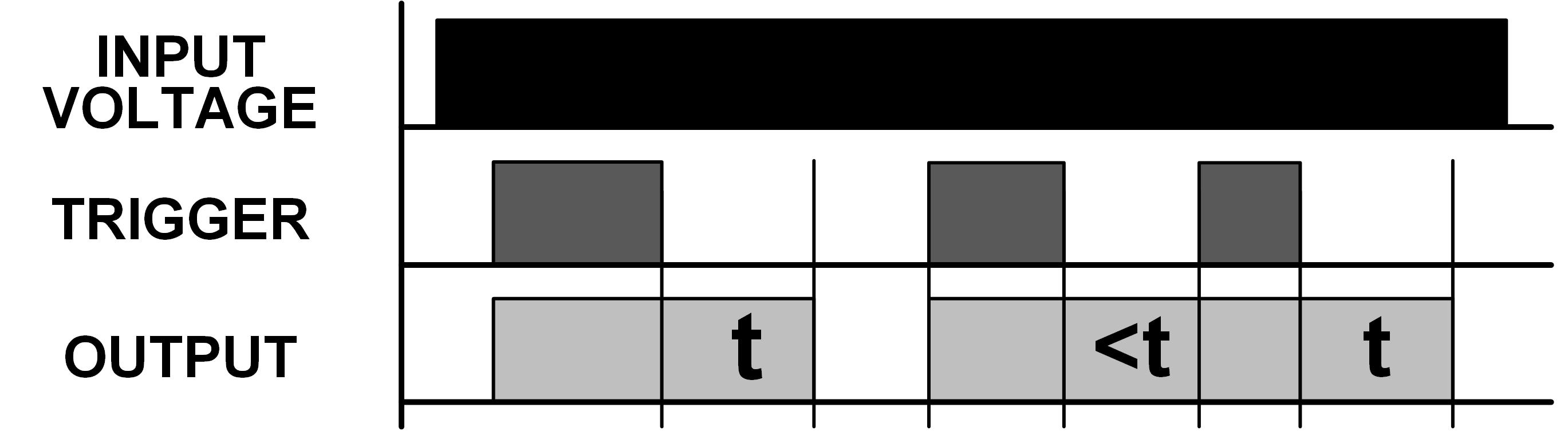

Function Chart

Product Overview

Features:

• DIP-Switches for accurate digital set of time delay
• Uses Industry-standard 8 pin sockets
• 10A SPDT output contacts
• LED indicates relay status
• Pilot Duty Rating

Enclosure Style:

Plug-in
Configuration / Contact Rating:
SPDT 10A @ 240V AC / 10A @ 30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.), B300 & R300
Application Information:
• Voltage Tolerance:
AC Operation: +10/-15% of nominal at 50/60 Hz
DC Operation: +10/-15% of nominal
• Load (Burden): 2 VA
• Setting Accuracy:
Constant Voltage & Temperature: ±0.1% of set time or ±50ms, whichever is greater
Variable Voltage & Temperature: ±1% of set time or ±50ms, whichever is greater
• Repeat Accuracy:
Constant Voltage & Temperature: ±0.1% of set time or ±0.02 seconds, whichever is greater
Variable Voltage & Temperature: ±1% of set time or ±0.02 seconds, whichever is greater
• Reset Time: 0.04 Seconds
• Start-up Time: 0.05 Seconds
• Maintain Function Time: 0.01 Seconds
• Insulation Voltage: 2kV
• Temperature:
Operation: -28° to 65° C (-18° to 149° F)
Storage: -40° to 85° C (-40° to 185° F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
Approvals:

Operations

Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.

Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
