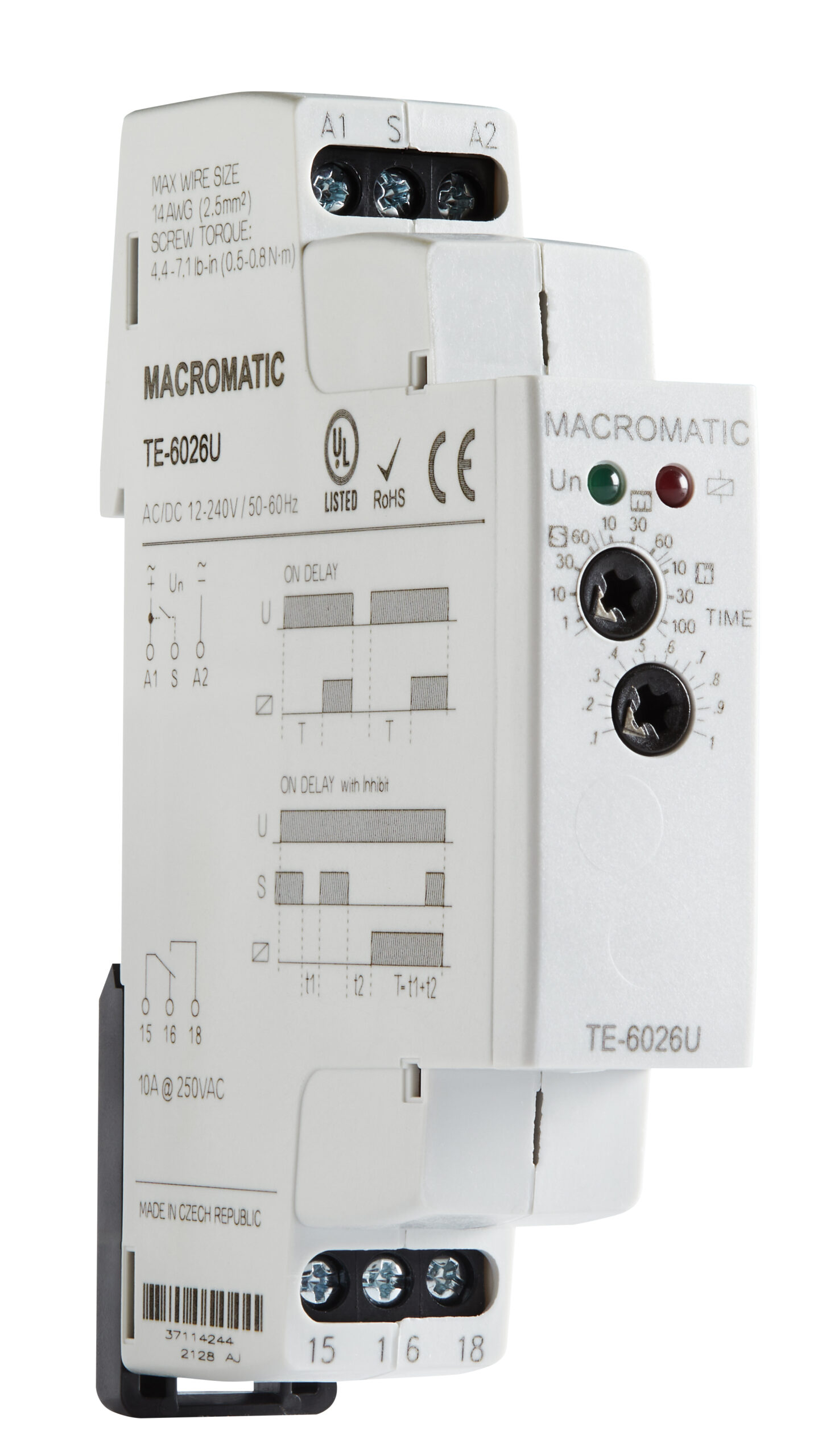

TE-6 Series
May not be exact product – for reference only.

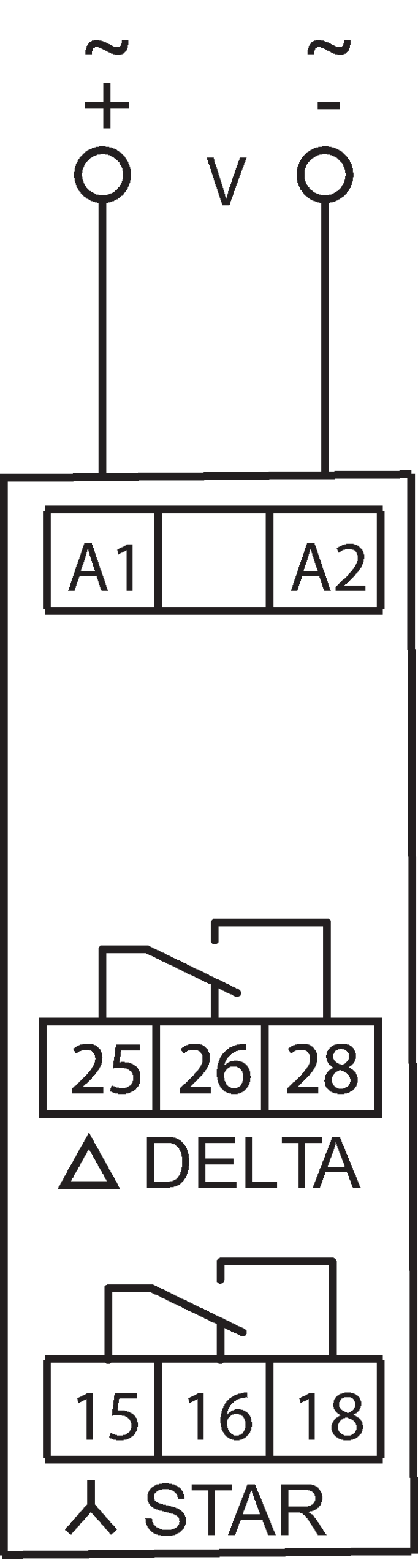

TE-6041U
Lead Time:
Function
CONTROL VOLTAGE
output
TIMING RANGE
TIMING RANGE 2
MOUNT
Setting Adjustment
Options
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER 2
$54.35
Description of Function
Function Chart
Product Overview
Features:
• 0.1 second – 100 hour time delay ranges
• 10A SPDT contacts
• LEDs indicate power applied, timing mode, and output relay status
• Compact 17.5mm enclsoure mounts on 35mm DIN-rail
Enclosure Style:
Configuration / Contact Rating:
Application Information:
AC Operation: +10%/-15% of nominal at 50/60 Hz
DC Operation: +10%/-15% of nominal
• Load (Burden): 2 VA / 1.5 W (DC)
• Minimum Switching: 100mA @ 5V
• Life:
Mechanical: 10,000,000 operations
Full Load: 50,000 operations
• Setting Accuracy: ±5%
• Repeat Accuracy: ±0.2%
• Reset Time 0.150 Seconds
• Temperature:
Operating: -20° to 55°C (-4° to 131°F)
Storage: -30° to 70°C (-22° to 158°F)
Approvals:
Operations
Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
