TE-881 Series
May not be exact product – for reference only.

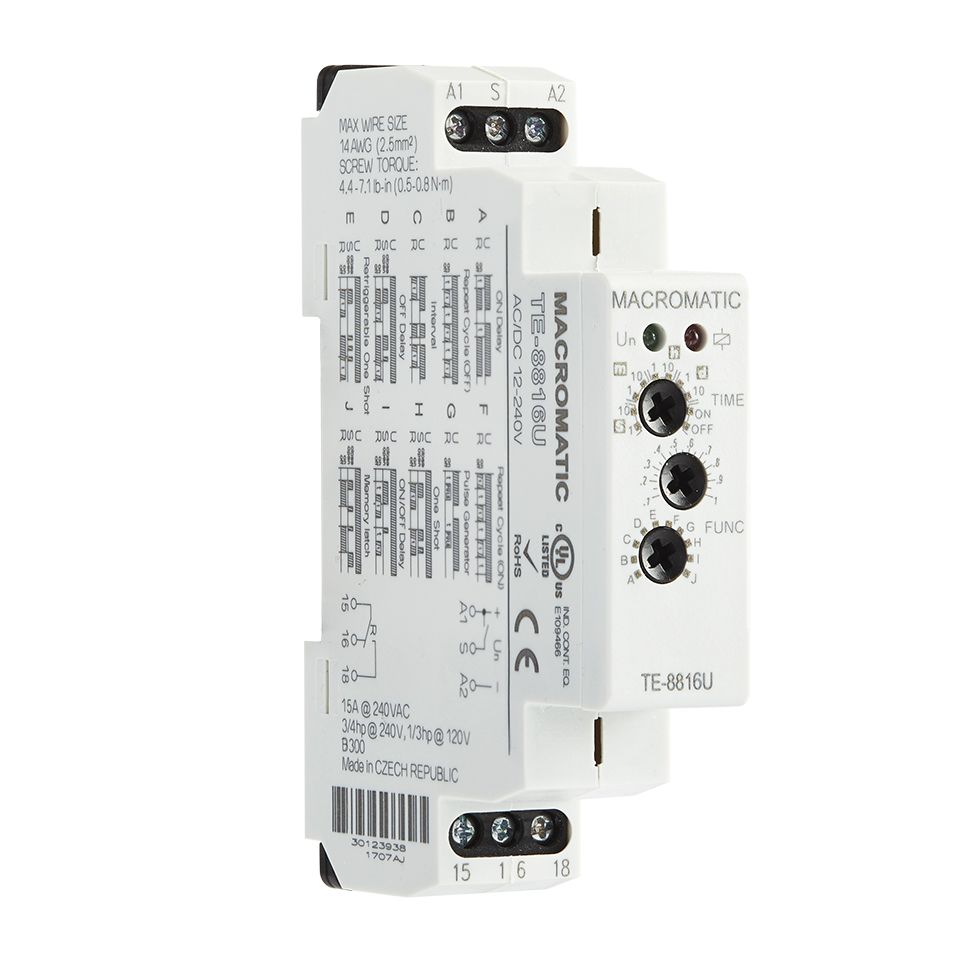

TE-8816U
Lead Time:
Function
CONTROL VOLTAGE
output
TIMING RANGE
TIMING RANGE 2
MOUNT
Setting Adjustment
Options
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER 2
$54.82

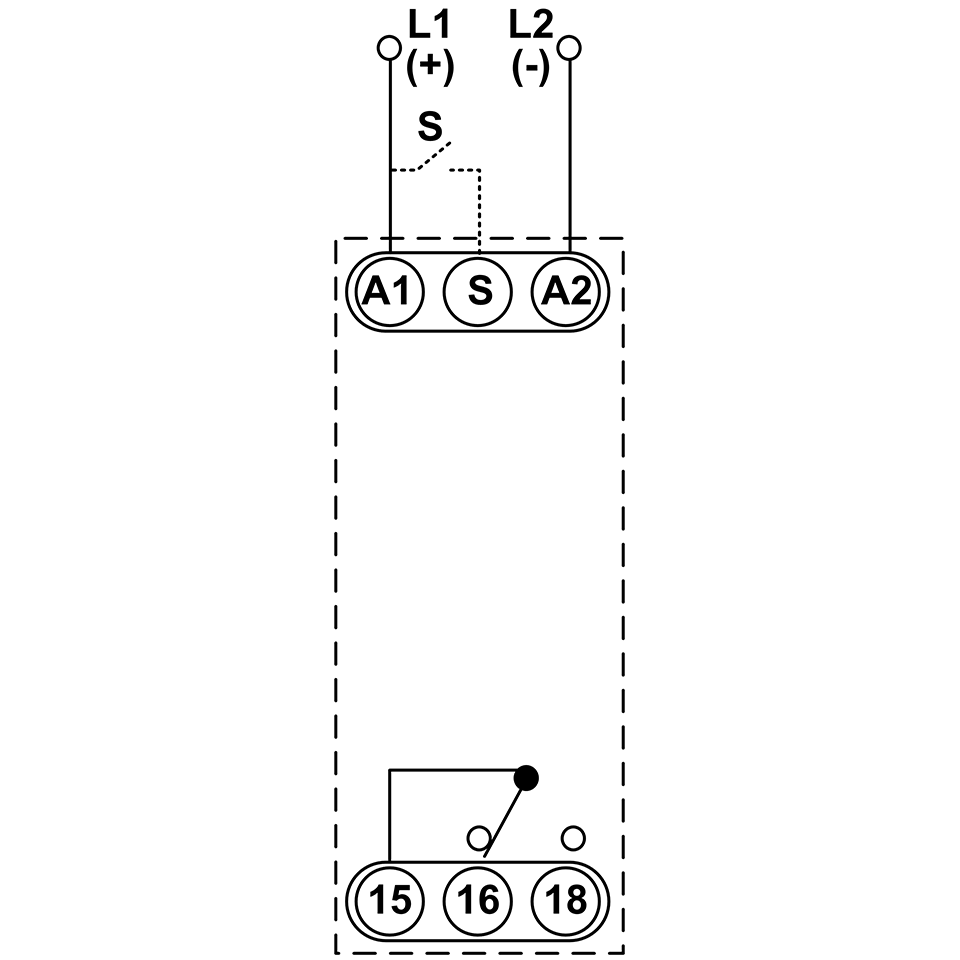

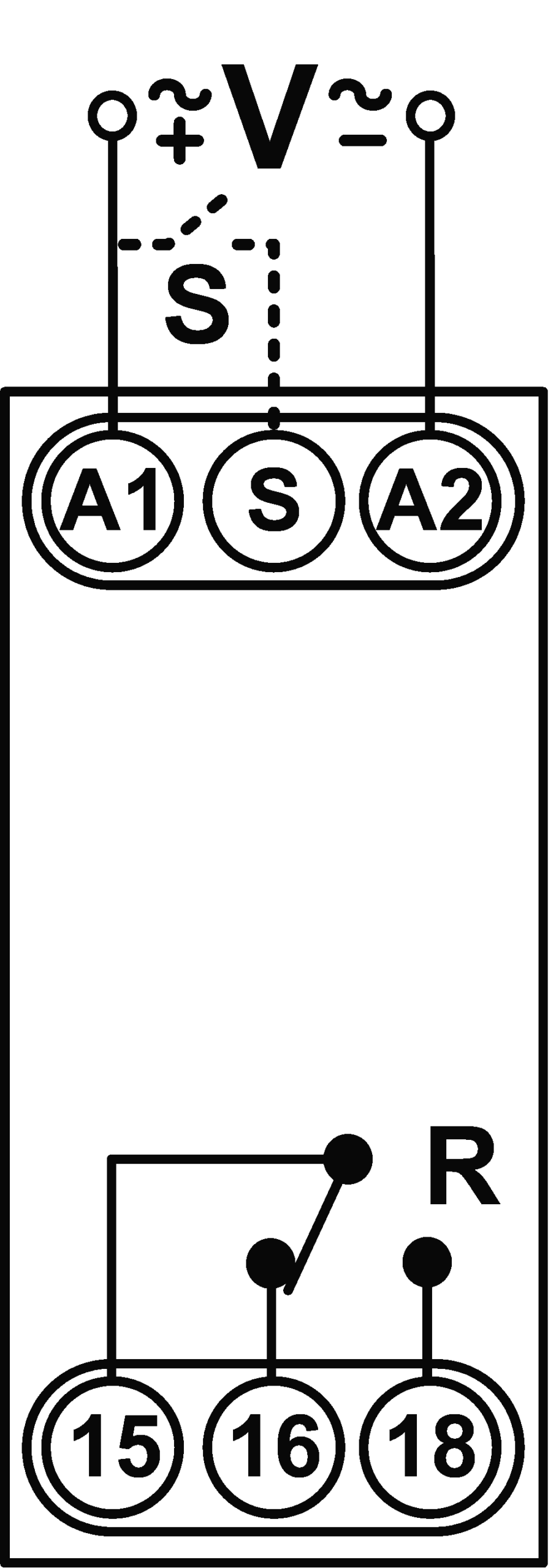

Description of Function

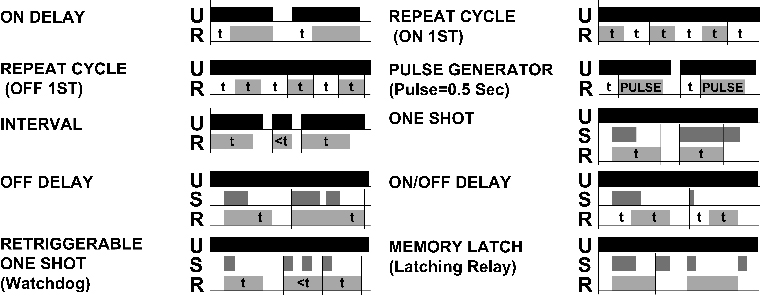

Function Chart
Product Overview
Features:
• Universal Input Voltage: 12-240V AC/DC
• 0.1 second – 10 day programmable time delay
• 15A SPDT output contacts
• LEDs indicate output relay status & timing mode
• Compact 17.5mm enclosure mounts on 35mm DIN track
• Pilot Duty Rating
Enclosure Style:
Configuration / Contact Rating:
Application Information:
AC Operation: +10%/-15% of nominal at 50/60 Hz
DC Operation: +10%/-15% of nominal
• Load (Burden): 3VA (AC), 1.7W (DC)
• Minimum Switching: 100mA
• Setting Accuracy: ±5%
• Repeat Accuracy: ±0.2%
• Reset Time: 0.150 Seconds
• Temperature:
Operating: -20° to 55°C (-4° to 131°F)
Storage: -30° to 70°C (-22° to 158°F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
Approvals:
Operations
Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
