TE5 Series
May not be exact product – for reference only.
TE5222U-37
Lead Time:
Function
CONTROL VOLTAGE
output
TIMING RANGE
TIMING RANGE 2
MOUNT
Setting Adjustment
Options
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER 2
$57.68
Description of Function
Function Chart

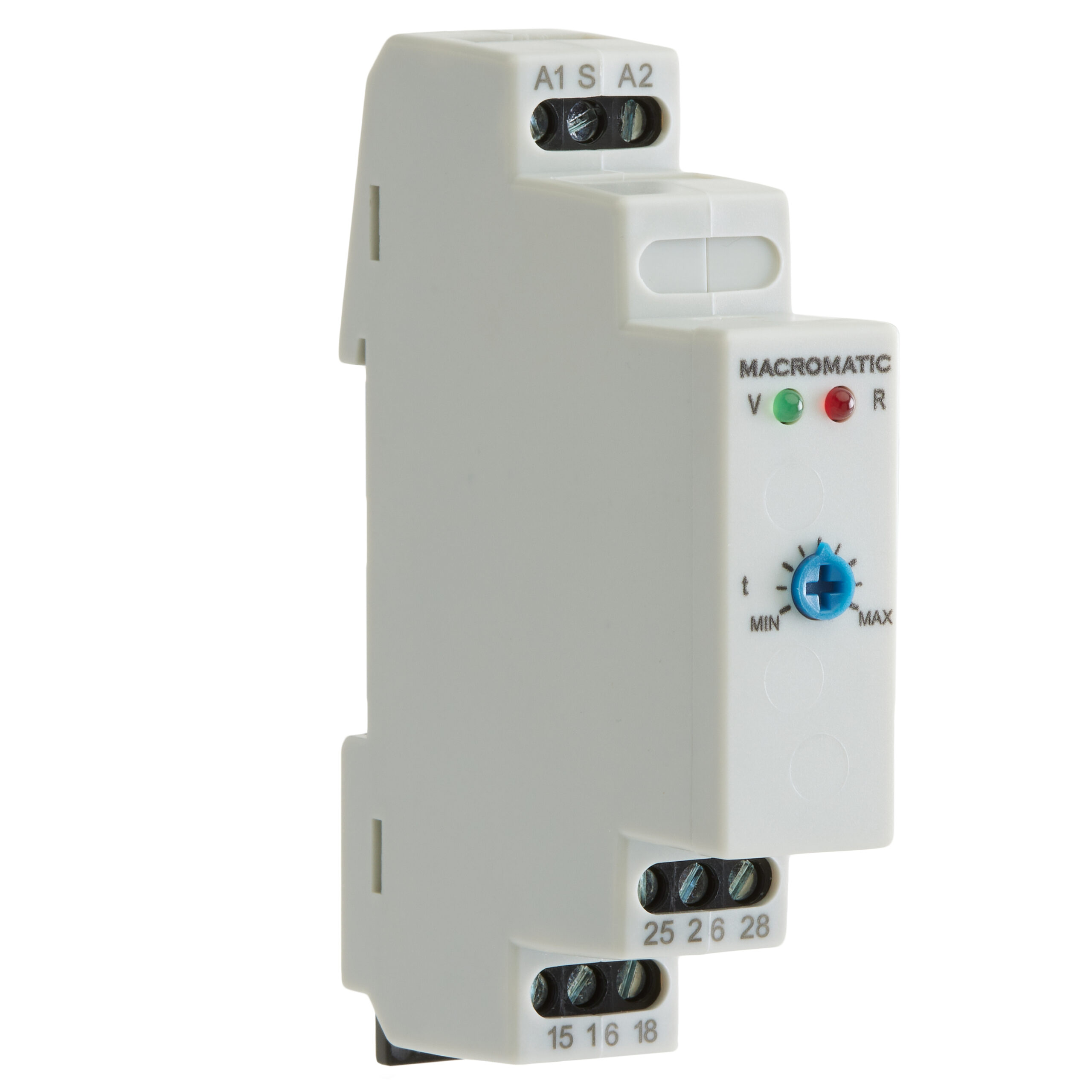

Product Overview
Features:
• Adjustable or fixed time ranges from 0.05 seconds to 100 hours.
• Slim 17.5mm design for compact DIN-Rail mounting.
• LED’s indicate power applied, output relay status and timing mode.
• 10A DPDT contacts.
Enclosure Style:
Configuration / Contact Rating:
Application Information:
AC Operation +10/-15% of nominal at 50/60 Hz
DC Operation -10/15% of nominal
• Load (Burden): Maximum of 4 VA
• Setting Accuracy:
Maximum Setting (adjustable): +5%, -0%
Minimum Setting (adjustable): +0%, -50%
Fixed Time Delay: ±2% or 50ms, whichever is greater
• Repeat Accuracy:
Constant Voltage & Temperature: ±0.1% or ±0.05 Seconds, whichever is greater
Variable Voltage & Temperature: ±5% or ±0.1 Seconds, whichever is greater
• Reset Time: 0.04 Seconds
• Start-up time: 0.05 seconds
• Maintain Function Time: 0.01 seconds
• Minimum Required Trigger Switch Closure: 0.05 seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149° F)
Storage: -40° to 85° C (-49° to 185° F)
• Life:
Mechanical: 10,000,000 perations
Full load: 100,000 operations
• Mounting: 35MM DIN Rail required, panel mounting with screw not supported
• Wiring:
Flat blade (slotted) screw terminals
Wire Size: 12-22AWG
Maximum Tightening Torque: 4in-lb
Recommend 1/8″ (3 mm) screw drivers
Approvals:
Operations
Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
