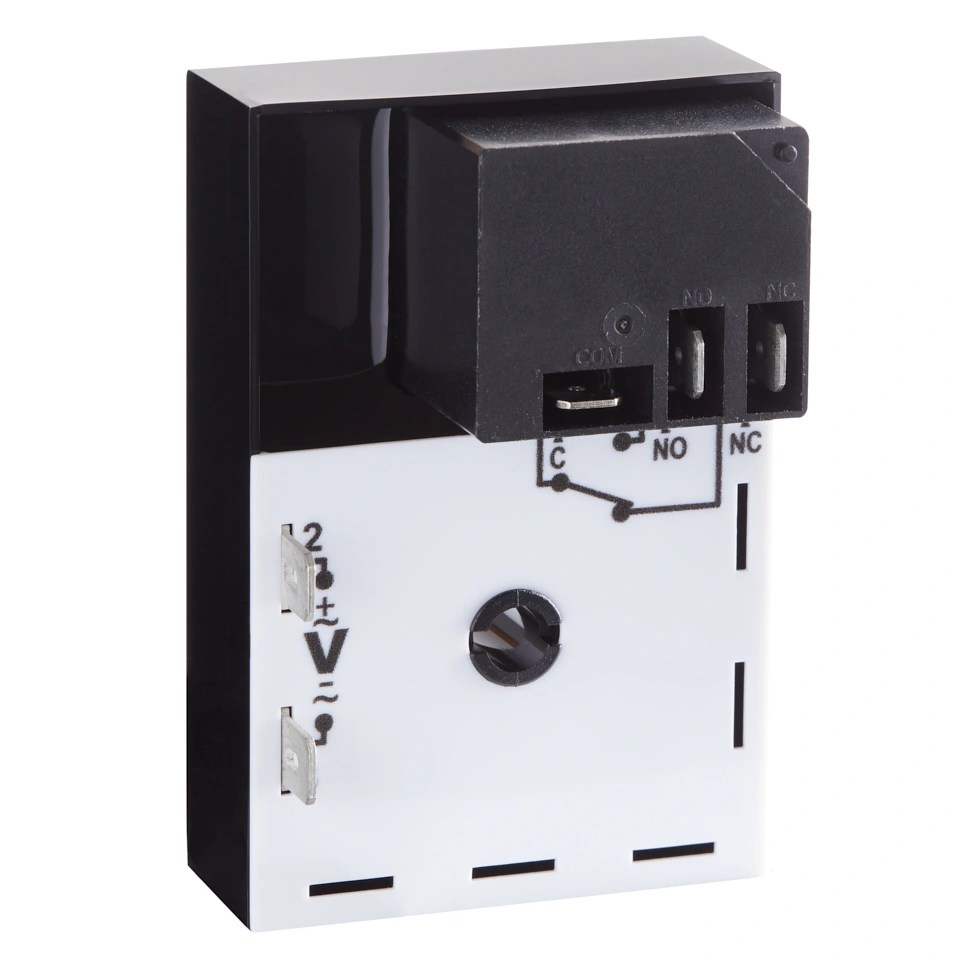

TH40261-F

Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz; DC Operation: +10/-15% of nominal Load (Burden): Maximum of 3 VA for all voltages Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%; Minimum Setting (Adjustable): +0%, -50%; Fixed Time Delay: +2% or 50ms, whichever is greater Repeat Accuracy: Constant voltage and temperature: +0.1% or + 0.04 seconds, whichever is greater; Changing voltage and temperature within limits: +5% or + 0.1 seconds, whichever is greater. Reset Time: Triggered with Input Voltage: 100ms; Triggered with Control Switch: 40ms Start-up Time: Time from when power is applied until unit is timing: 0.05 seconds Maintain Function Time: Time unit continues to operate after power is removed: 0.01 Seconds. Interruptions longer than this time may reset the timing cycle; Units Triggered by a Control Switch: Minimum required trigger switch closure time is 50ms. Temperature: Operating: -28o to 65o C (-18o to 149o F); Storage: -40o to 85o C (-40o to 185o F) Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations
