TH4 Series

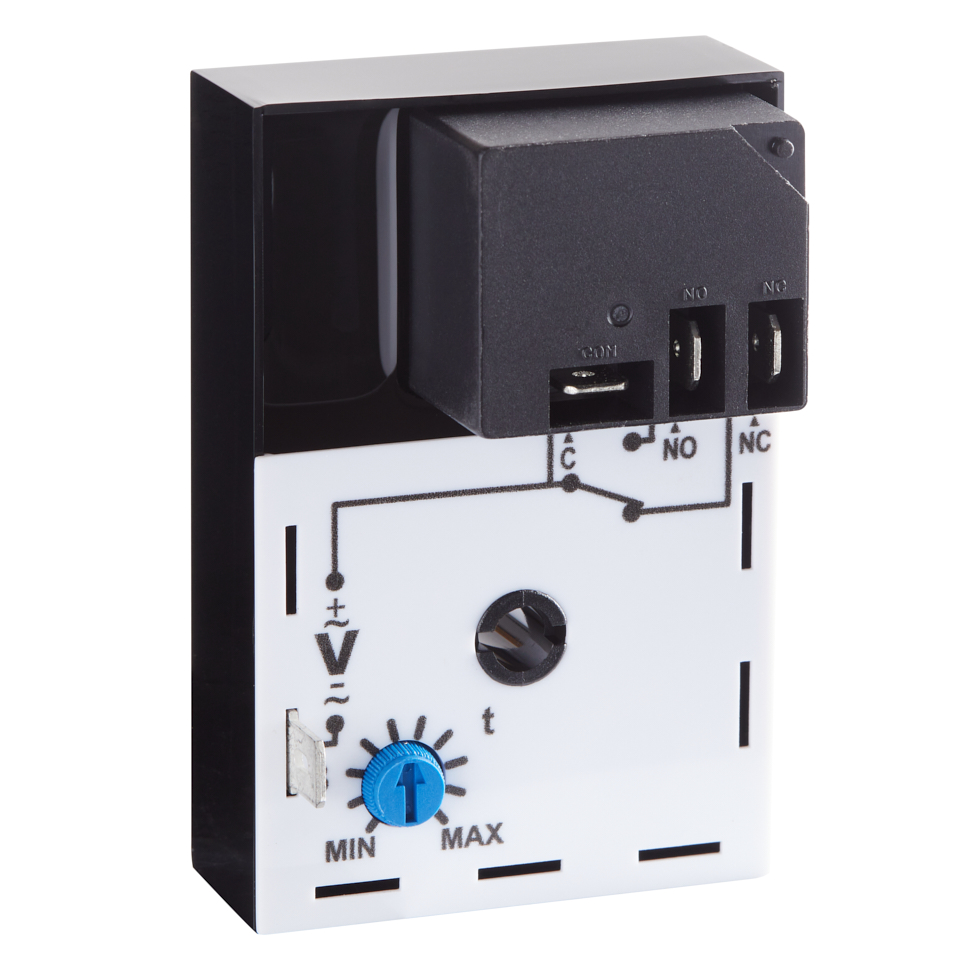

May not be exact product – for reference only.
TH40568-04J
Lead Time:
Function
CONTROL VOLTAGE
output
TIMING RANGE
TIMING RANGE 2
MOUNT
Setting Adjustment
Options
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER 2
$48.36
Description of Function

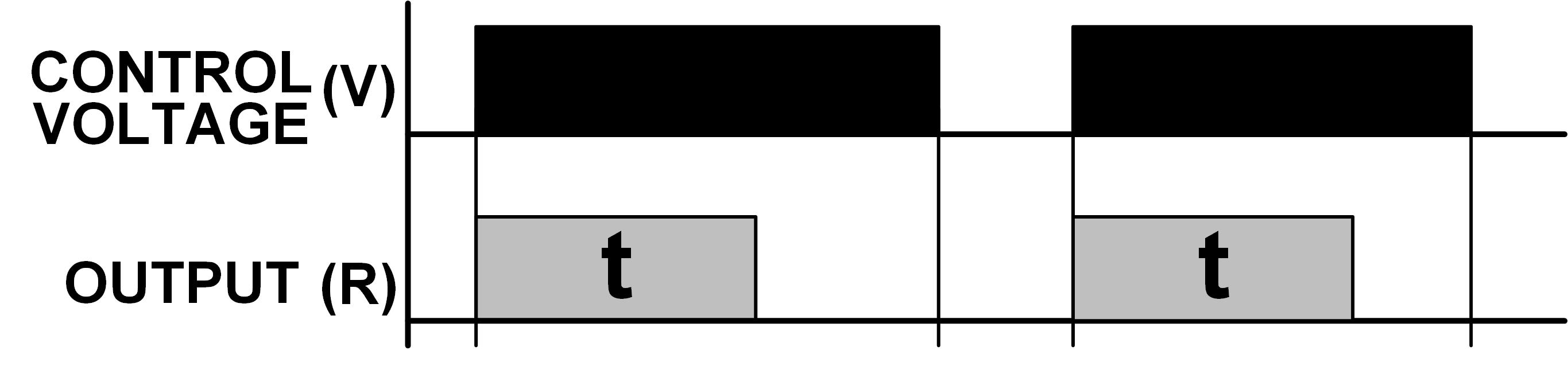

Function Chart
Product Overview
Features:
• 30A SPDT relay output contacts can control loads without a separate contactor
• Cost effective design & compact 2″ x 3″ enclosure are ideal for volume OEM applications
• Microprocessor-based for superior accuracy and repeatability
• Encapsulated for resistance to harsh environments
• Control voltage connected at relay common makes wiring easier
• Choose from adjustable on-board potentiometers, remote potentiometers, or factory-set fixed time delays
• Time ranges from 0.05 seconds to 100 hours
Enclosure Style:
Configuration / Contact Rating:
Application Information:
AC Operation: +10/-15% of nominal at 50/60 Hz
DC Operation: +10/-15% of nominal
• Load (Burden): 3 VA
• Setting Accuracy:
Maximum Setting (Adjustable): +5%, -0%
Minimum Setting (Adjustable): +0%, -50%
Fixed Time Delay: ±2% or 50ms, whichever is greater
• Repeat Accuracy:
Constant Voltage & Temperature: ±0.1% or ±0.04 seconds, whichever is greater
Variable Voltage & Temperature: ±5% or ±0.1 seconds, whichever is greater
• Reset Time: 0.1 Seconds
• Start-up Time: 0.05 Seconds
• Maintain Function Time: 0.01 Seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Life:
Mechanical: 10,000,000 operations
Full Load: 100,000 operations
Approvals:
Operations
Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
