THL-1 Series
May not be exact product – for reference only.

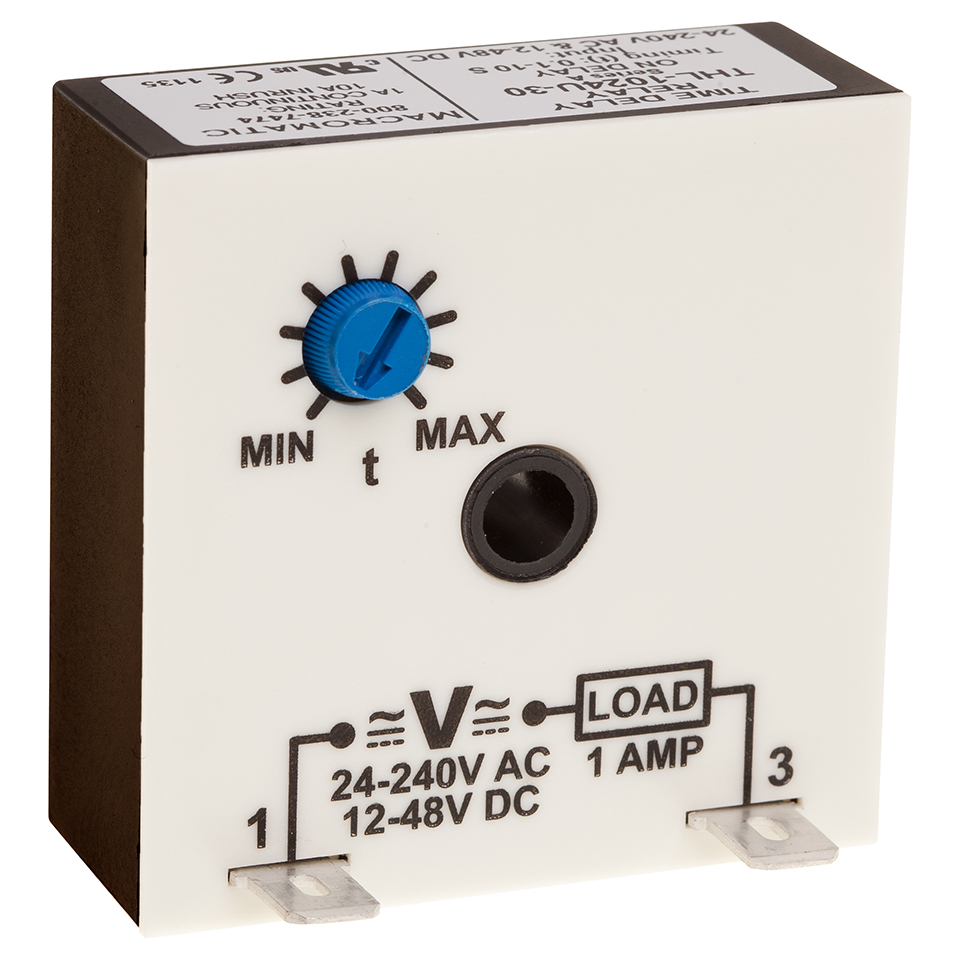

THL-1024U-09
Lead Time:
Function
CONTROL VOLTAGE
output
TIMING RANGE
TIMING RANGE 2
MOUNT
Setting Adjustment
Options
REMOTE POTENTIOMETER
REMOTE POTENTIOMETER 2
$30.30
Description of Function
Function Chart
Product Overview
Features:
• Onboard & remote adjustable or fixed time delays from 0.01 seconds to 100 hours

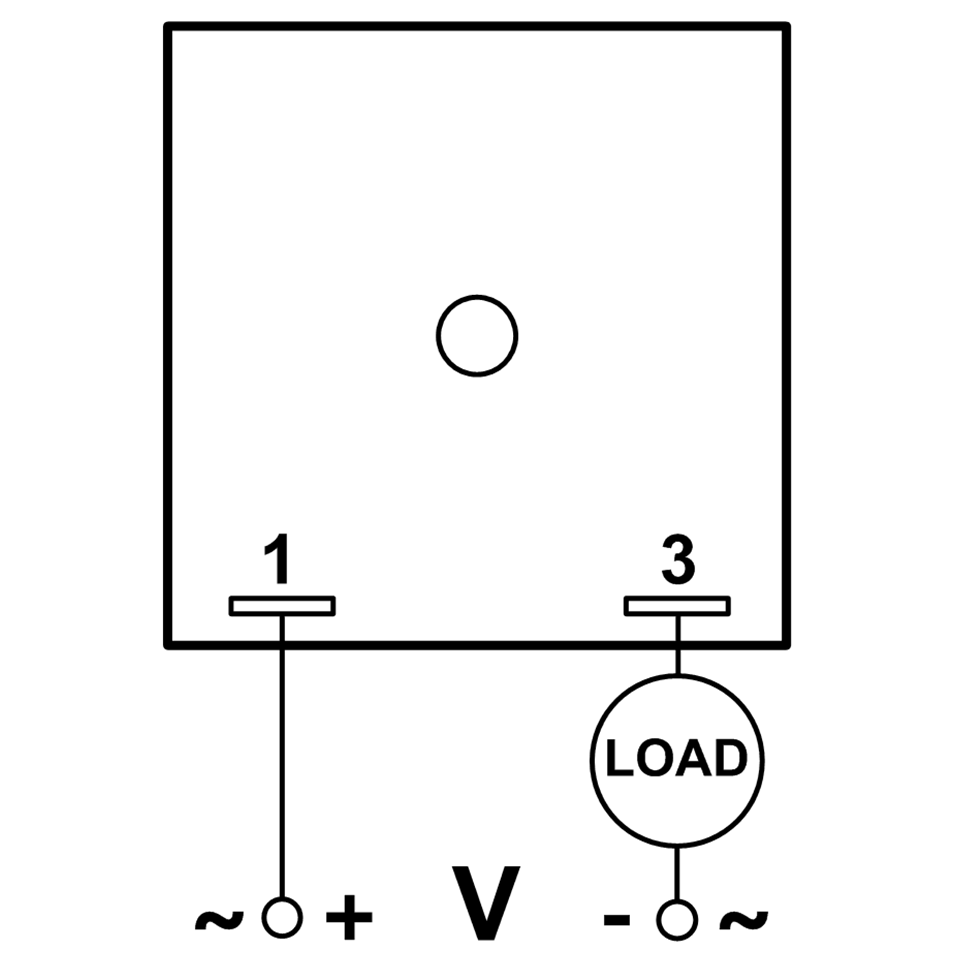

• Two-terminal series-connection with the load
• Cost effective design & compact 2″ x 2″ enclosure are ideal for volume OEM applications
• Microprocessor based design for greater performance & maximum flexibility
• Encapsulated for protection against harsh environments
• Output rated 1A continuous / 10A inrush

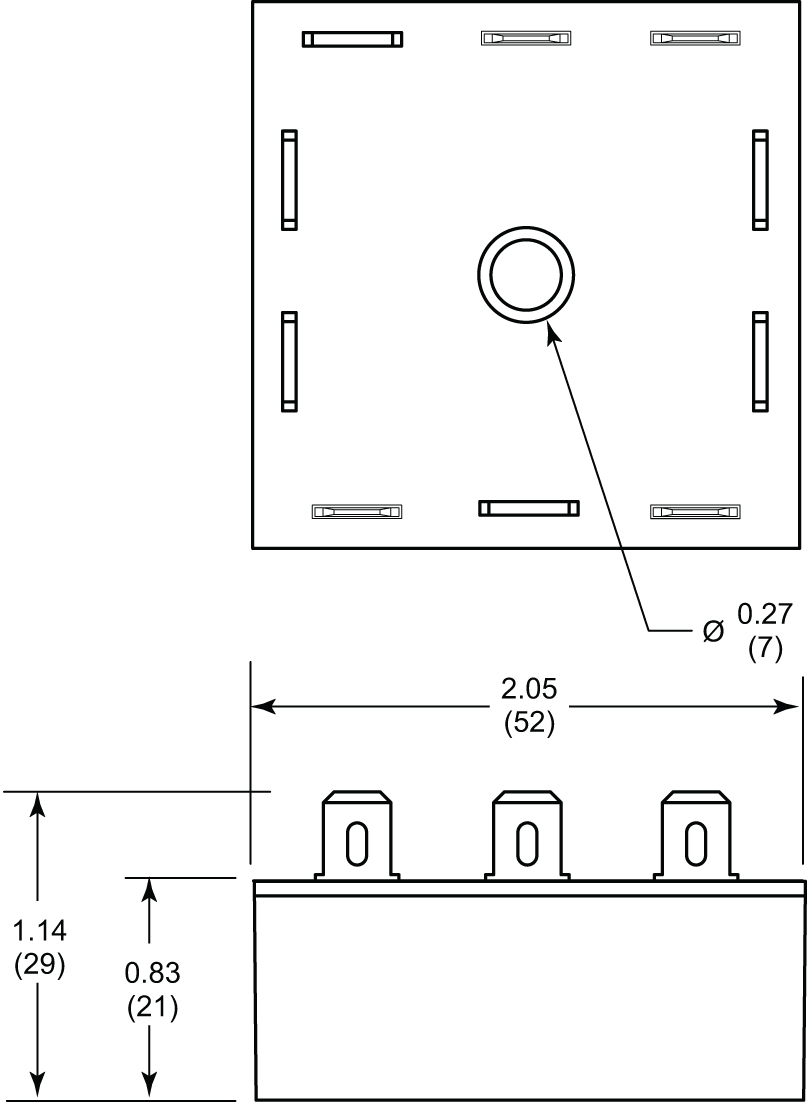

Enclosure Style:
Configuration / Contact Rating:
Application Information:
AC Operation: +10/-15% of nominal at 50/60 Hz
DC Operation: +10/-15% of nominal
• Load (Burden): 1VA
• Setting Accuracy:
Maximum Setting (Adjustable): +5%, -0%
Minimum Setting (Adjustable): +0%, -50%
Fixed Time Delay: ±2% or 50ms, whichever is greater
• Repeat Accuracy: ±0.1% or ±0.01 seconds, whichever is greater
• Reset Time: 50ms
• Start-up Time: 0.02 Seconds
• Maintain Function Time: 0.01 Seconds
• Temperature:
Operating: -28° to 65°C (-18° to 149°F)
Storage: -40° to 85°C (-40° to 185°F)
• Life: No predictable failure if used within operating parameters
• Leakage Current (OFF-State): <5 ma @ 240VAC
• Minimum Load Current: 20ma
• Effective Voltage Drop (ON-State): Maximum 3V @ 1A for all voltages
• Mounting: Surface with one #8 or #10 screw and a maximum tightening torque of 15 in-lbs
Termination: 0.25″ male quick-connect terminals
Approvals:
Operations
Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
Adjust the pick-up voltage setting (Umax) between the full range as shown on the product nameplate. Then adjust the drop-out voltage setting (Umin) between 75% and 95% of the pick-up setting. The relay energizes (and the LED is Red) when the monitored voltage is above the pick-up setting for a period longer than the fixed pick-up time delay of 0.5 seconds. The relay de-energizes (and the LED is Green) when the monitored voltage is below the drop-out setting for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds.
