PMP Series

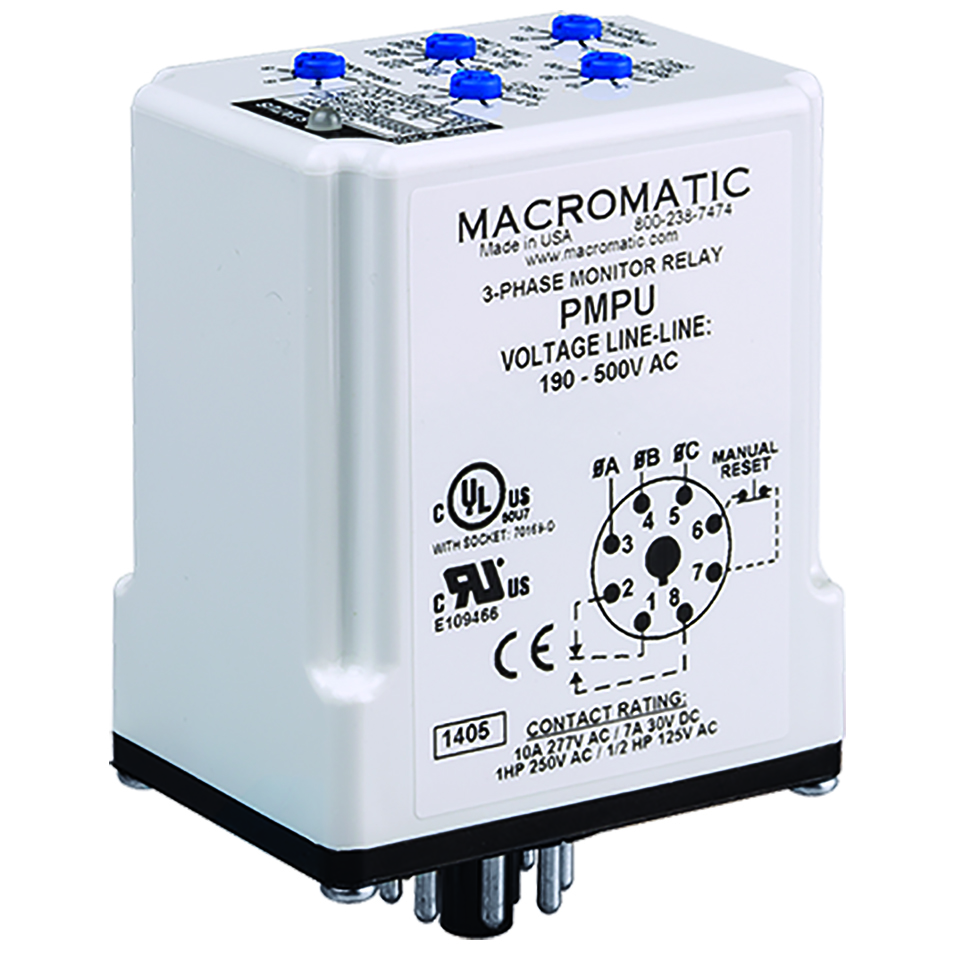

May not be exact product – for reference only.
PMPU
Lead Time:
5
Communication platform
None
Monitored Voltage:
190 – 500V AC
output:
10A SPDT
protection
Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage & Overvoltage
ENCLOSURE STYLE
Plug-In
standard modifications
Adjustable Trip Points & Time Delays
$170.11
Description of Function

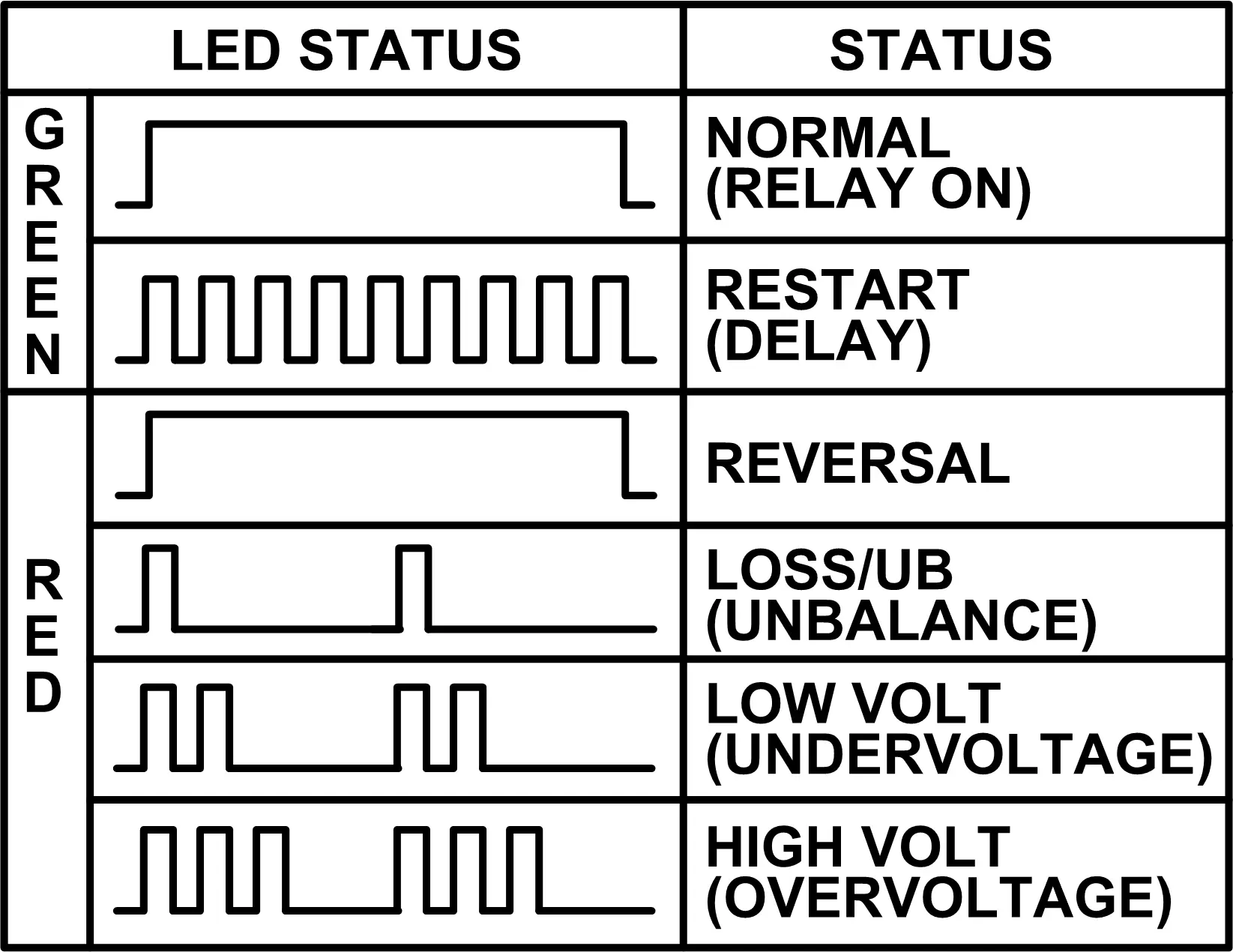

When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized after the Restart Delay is completed. Any one of five fault conditions will de-energize the relay after a delay. As standard, re-energization is automatic upon correction of the fault condition. Manual reset is available if an external momentary N.C. switch is connected to pins 6 and 7. A bi-color status LED indicates normal condition and also provides specific fault indication to simplify troubleshooting (see right).
Product Overview
Features:
Protects against phase loss, phase reversal, phase unbalance, undervoltage, overvoltage & rapid cycling
True RMS voltage measurement ensures accurate sensing across more applications
Retains fault indication and continues monitoring all voltages even with a lost phase
Ultimate three-phase protection with a variety of user-selectable and adjustable settings
Full fault indication on top of unit for easy troubleshooting
Manual reset option works with external switch to reset the relay from outside the enclosure

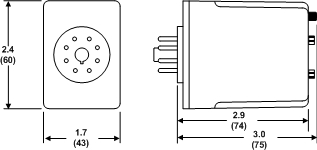

Enclosure Style:
Plug-In
Configuration / Contact Rating:
10A @ 277V AC / 7A @ 30V DC; 1HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
Application Information:
Load (Burden): Less than 40 VA
Response Times:
Power Up/Restart After Fault: 1-300 Seconds Adjustable
Drop-out Due to:
Phase Loss & Reversal
Phase Unbalance
Undervoltage
Overvoltage
100ms Fixed
0.3 – 30 Seconds Adjustable
0.3 – 30 Seconds Adjustable
0.3 – 30 Seconds Adjustable
Minimum/Maximum Voltage: 156-550V (PMPU); 77-152V (PMP120): 345-660V (PMP575), all 50/60Hz. +5%

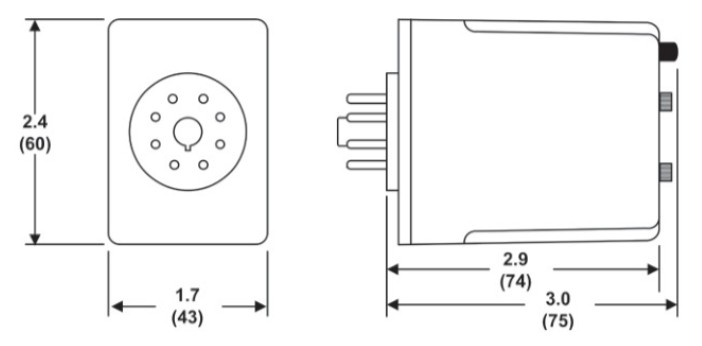

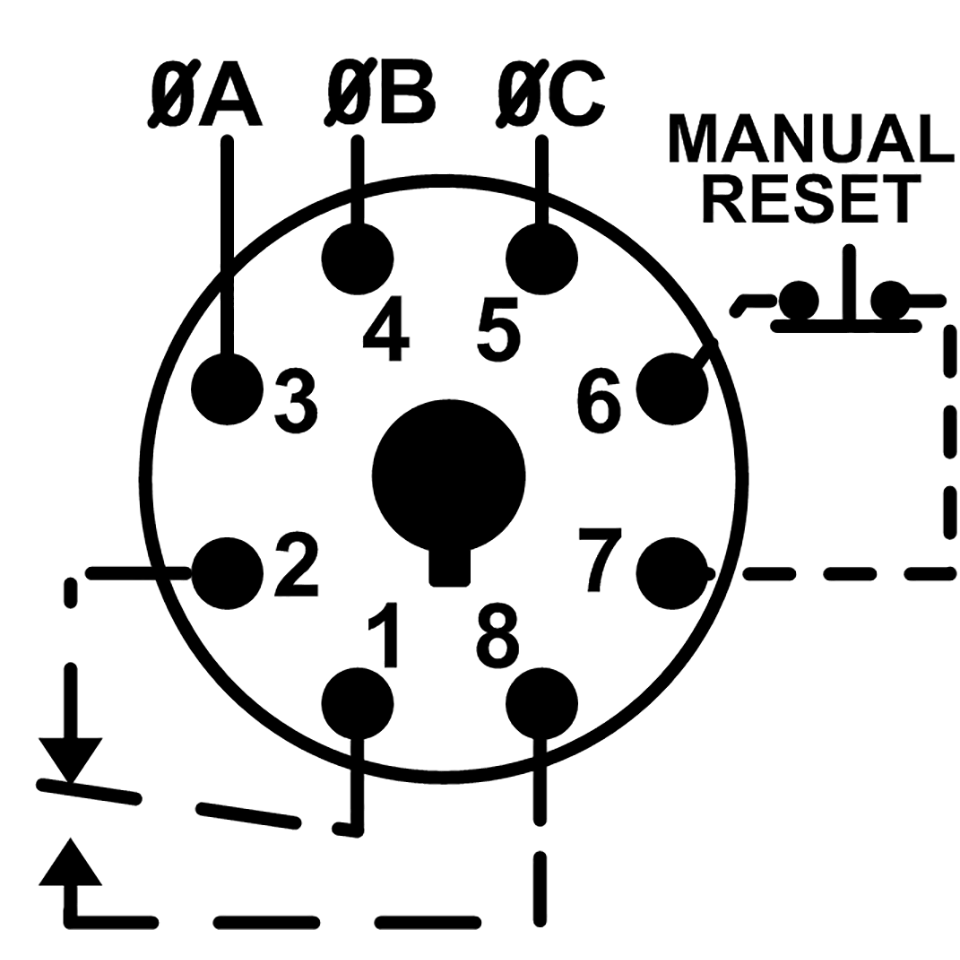

Reset: As standard, the PMP Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 6 and 7. Upon application of line voltage, the PMP Series will go into Manual Reset mode if it recognizes a closure across terminals 6 and 7. After a fault clears, the relay will not reset until the N.C. switch is opened.
Output Contacts: 10A @ 277V AC / 7A @ 30V DC;
1HP @ 250V AC, 1/2HP @ 125V AC, C300 Pilot Duty
Life: Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Temperature: -28o to 65o C (-18o to 149o F)
Approvals:
Operations
When the proper 3-phase line voltage is applied to the unit and the phase sequence (rotation) is correct, the relay is energized after the Restart Delay is completed. Any one of five fault conditions will de-energize the relay after a delay. As standard, re-energization is automatic upon correction of the fault condition. Manual reset is available if an external momentary N.C. switch is connected to pins 6 and 7. A bi-color status LED indicates normal condition and also provides specific fault indication to simplify troubleshooting.
To see all the advantages of Macromatic’s new PMPU product vs. the competition, view our Phase Monitor Relay Competitive Comparison.
